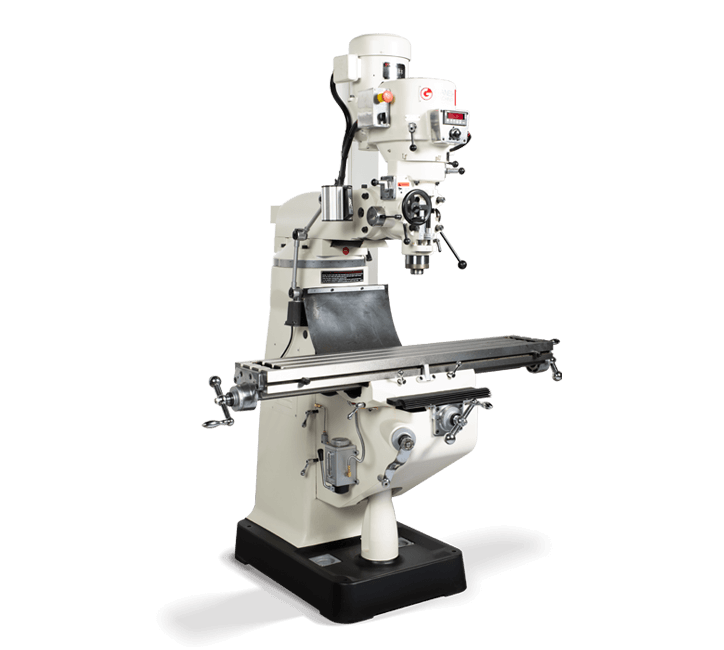

Features
| * 3 Horsepower Variable Speed Head | * 9″ x 42″ Table Dimensions |
| * Class-7 Super Precision Spindle Bearings | * Coolant Proof Halogen Lamp Standard |
| * Hard-Chrome Plated and Mirror Ground Quill | * Hard-Chrome Plated X & Y Axis Ways |
Specifications
| Table | GMV-1F |
| Table Size (W x L) | 9″ x 42″ (230 x 1067 mm) |
| T-slot Width / Quantity | 5/8″ / 3 on 2.5″ centers |
| Table Load Capacity | 400 lbs. (181 kg) |
| Table Load Capacity (Evenly Distributed) | 850 lbs. (385 kg) |
| Table Surface to Floor Dimensions | 32″ – 48″ (820 – 1226 mm) |
| Machine Travels & Capacity | |
| Table Travel – Longitudinal – X Axis | 30” (762 mm) |
| Table Travel with Power Feed | 24.8” (630 mm) |
| Cross Travel – Y Axis | 12” (305 mm) |
| Vertical Knee Travel – Z Axis | 16” (406 mm) |
| Overarm (ram) Travel | 12” (305 mm) |
| Overarm Swivel | 360° |
| Spindle Nose-to-Table Surface | 0” – 18.5” (0 – 469 mm) |
| Spindle Centerline to Column Face | 6.75” – 18.75” (171 – 476 mm) |
| Leadscrews with ground pitch surface (X & Y) | 0.200” per rev |
| Ways – X, Y & Z Axes – Hard Chrome Plated | Hardened & Ground Dovetail Ways |
| Spindle Head (Vari-Speed) | |
| Spindle Motor | 3-HP / 3-Phase 220 volts (440 Optional) |
| Spindle Taper (hardened & ground) | R-8 |
| Spindle Runout | 0.00008” maximum runout (0.002 mm) |
| Spindle Bearings ABEC-7 matched set | Class-7 Bearings |
| Variable Speed Spindle | 60 – 4,500 RPM |
| Head Tilt (Left-to-Right) | 90° – 0 – 90° |
| Head Tilt (Front-to-Back / Up-Down) | +45° – 0 – -38° |
| Head Swivel on Turret | 360° |
| Quill | |
| Quill Diameter | 3-3/8” (85.725 mm) |
| Quill Travel – Manual & Power Feed | 5” (127 mm) |
| Quill feeds – With Trip Release – Inch | 0.0015” / 0.003” / 0.006” |
| Quill feeds – With Trip Release – Metric | 0.04mm / 0.08mm / 0.16mm |
| Dimensions & Weight | |
| Machine Weight | 2,222 lbs. (1010 Kgs) |
| Electrical Requirements – 220 volts | 3-Ph / 60 Hz / 9.5 amps |
 |
 |
