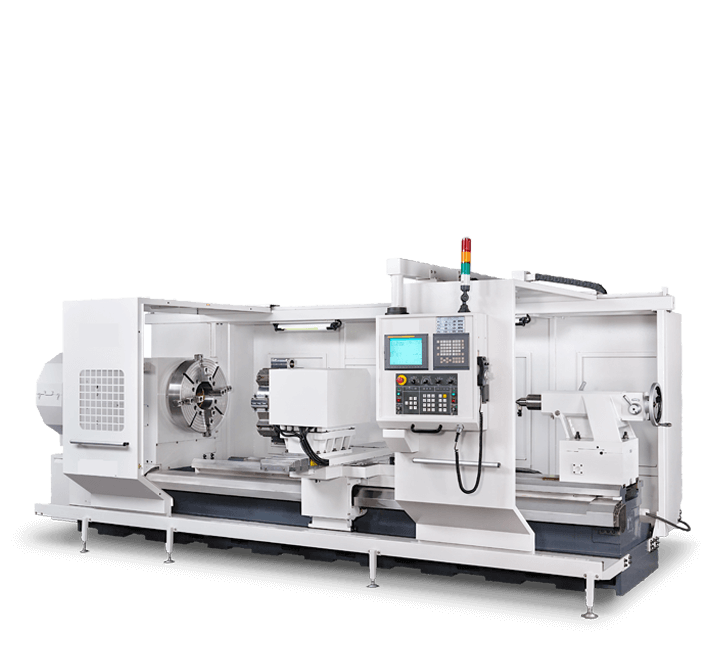

GANESH GTD-44-55 HK CNC Heavy Duty Big Bore Lathes
Features
| * 30-HP Spindle Motor (40-HP optional) |
* Rear Spindle Chuck Mount available to support long workpieces |
| * 6 – 500 RPM Spindle Speeds |
* Boring Bar Holder Available for back of Cross Slide |
| * 4 – Automatically Selected Gear Ranges for High Torque |
* Optional Tool Turrets Available |
| * A2-11 Spindle with a 6” Bore (9”, 10”, 12” & 15” Spindle Bores Optional) |
* Dual Tool Turrets Available for front & back of Cross Slide |
Specifications
| Capacity & Dimensions |
GTD-44-55 HK CNC |
| Swing over Bed |
44″ (1120mm) |
| Swing over Cross Slide |
27.95″ (710mm) |
| Distance between centers |
78″ – 236″ (2000 – 6000mm) |
| Bed Way Width |
32″ (810mm) |
| Spindle |
|
| Spindle Motor Horsepower – up to 160″ bed lengths |
30 HP (22kw Fanuc) / (40 HP Optional) |
| Spindle Motor Horsepower – 200″ + bed lights |
40 HP (30kw) |
| Spindle Speeds |
6-500 rpm (6-292 with A2 – 15 & A2 – 20 spindles) |
| Spindle speed gear ranges – automatically selected |
4-gear ranges (infinitely variable speeds in each range) |
| Spindle Bore |
6″ (152mm) (Optional 9″, 10″, 12″ & 15″ available) |
| Spindle Nose |
A2-11 (Optional A2-15 / A2-20 spindle nose) |
| Axis |
|
| Cross Slide Travel |
23.62″ (600mm) (varies with turret selected) |
| X-Axis Ballscrew / Servo Motor |
40mm Pitch 5mm / 4 HP (3kw) Servo motor |
| Z-Axis Ballscrew / Servo Motor |
63mm Pitch 10mm / 5.5 HP (4kw) Servo motor |
| X and Z Axis rapid feed rate |
196″/min (5000 mm/min) |
| X and Z Axis cutting feed rate |
118″ / min (3000 mm/min) |
| Minimum input unit |
0.0001″ (0.001mm = 40 millionth of an inch) |
| Tool Turret |
|
| Turret Tool Stations |
8 Station tool turret with any mix of ID and OD tools |
| OD Tool Size |
1.25″ x 1.25″ (32 x 32mm) |
| ID Tool Holder Bore (4 ID Toolholders included) |
1.97″ (50mm) (63mm Optional) |
| Tailstock |
|
| Engraved with inch/metric quill graduations |
|
| Quill Diameter |
7.87″ (200mm) |
| Quill Stroke |
11.81″ (300mm) with 2 speed quill gearing |
| Quill Taper |
MT-6 |
| Body Movement |
Carried by saddle – manual lockdown |
| Optional Hydraulic Tailstock available |
Carried by saddle – hydraulic quill & bed lockdown |
| Specifications |
|
| Cooling System |
1.7 HP (1.275kw) coolant pump |
| Electrical needs – Fanuc 0i-TF, Drives & Motors |
220 vac / ±5% / 3 Phase / 60 Hz |
| Warranty – 1 Year Machine |
2 Year FANUC control and drives |
Machines need stable 220 Volts, 3 Phase – Please use appropriate transformers or voltage stabilizers.
