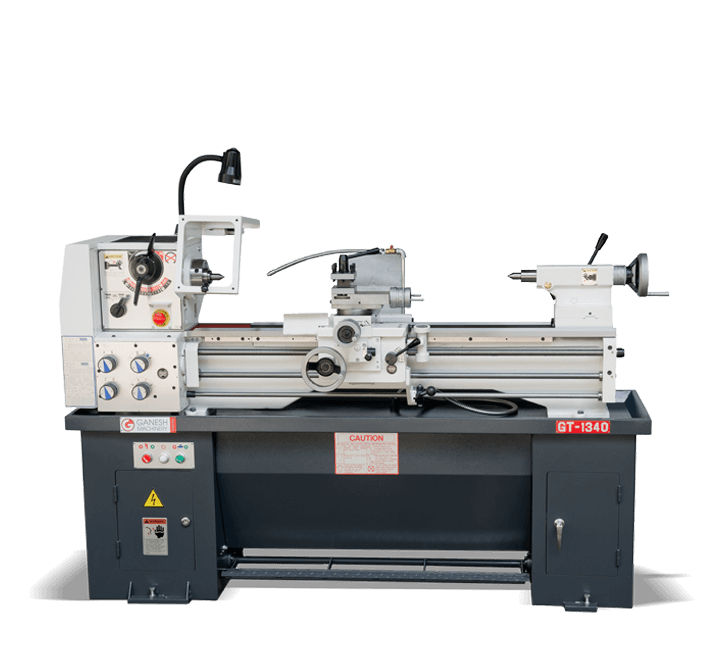

Features
| * Hardened and ground Turcite® coated bed ways | * 13″ x 40″ |
| * Hardened and ground gears | * Safety chuck guard |
| * 8-speed geared head spindle | * Coolant pump included |
| * Safety foot brake | * Chucks, steady rest and follow rest included |
Specifications
| Capacity & Dimensions | GTW-13 |
| Swing over Bed | 13″ |
| Center Height | 6 – 1/2″ |
| Swing over Cross Slide | 7 – 25/32″ |
| Swing thru Gap | 18 – 3/4″ |
| Length of Gap in front of face plate, D1-4 | 4 – 1/2″ |
| Distance between Centers | 40″ |
| Bed casting width, length, depth | 7-3/8″ / 65-1/8″ / 11-13/32″ |
| Spindle | |
| Spindle Motor Horsepower | 3-HP High: 1255 2000 755 460 |
| Spindle Speeds – 8 speed geared head rpm | 70 – 2000 Low: 190 300 115 70 |
| Spindle Bore | 1-1/2″ |
| Spindle Nose | D1 – 4 |
| Spindle taper in Spindle Nose | MT-5 (Morse Taper-5) |
| Carriage | |
| Cross Slide Travel | 6-5/16″ (160mm) |
| Cross Slide Width | 4 – 5/8″ (118mm) |
| Cross Slide Lead Screw Pitch | 8 TPI |
| Cross Slide Resolution per division | 0.25″/rev. (on diameters) |
| Carriage Lead Screw Diameter / Pitch | 7/8″ / 8 TPI (22mm / 3mm pitch) |
| Feed Rod Dimension | 3/4″ hexagon 1(9mm hexagon) |
| Compound | |
| Compound Top Slide Travel | 2 – 11/16″ (68mm) |
| Compound Top Slide Width | 3″ (76mm) |
| Cutting Tool Height Maximum | 5/8″ x 5/8″ (16mm x 16mm) |
| Tailstock | |
| Quill Diameter | 1 – 21/32″ (42mm) |
| Quill Stroke | 4 – 1/2″ (114mm) |
| Quill Taper | MT – 3 (Morse Taper #3) |
| Quill Tang Drive and Drift-Slot for Tailstock | included |
| Tailstock Body set-over adjustment | ±0.04″ (±1mm) |
| Thread Cutting | |
| Thread Cutting Range – 31 inch pitches | 4 – 56 TPI |
| Thread Cutting Range – 26 metric pitches | 0.4 – 7mm |
| Thread Cutting Range – 32 diametral pitches | 8 – 120 D.P. (optional) |
| Thread Cutting Range – 21 module pitches | 0.2 – 3 M.P. (optional) |
| Feeds | |
| Feeds – Longitudinal – 32 Feeds | 0.002″ – 0.548″ / rev. |
| Feeds – Cross – 32 Feeds | 0.0007″ – 0.0187″ / rev. |
| Weight & Dimensions | |
| Machine Dimensions – L x W | 76 3/8″ x 29 3/4″ (1940 x 755mm) |
| Machine Height | 48 3/4″ (1238mm) |
| Overall Machine Weight | 1345 lbs. 610 Kgs |
| Electrical Power Requirements | 220 volts / 3 Phase @ 8.50 amps |
 |
 |
