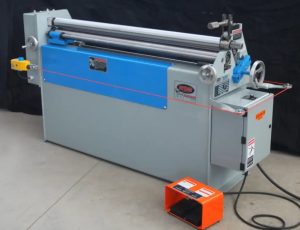

WDM 310 Series Plate Rolls

The WDM 310 Series plate roll is built primarily for the sheet metal industry and small maintenance shops. The 310 has been simplified with an all-electric design, eliminating the standard hydraulics of this style machine. Both the roll drive and the power bending adjustment drive (optional) are powered by an electric helical gear motor.

For a full quote use the contact button below or call!

Standard Features

Hardened and polished rolls 55-60 HRC （1045 flame hardened）G32 finish	Crowned rolls
Total electric operation	Near instant start/stop/reverse
Forward & reverse guarded foot switch for roll rotation	Rule and pointer to show roll position
Spur gear 2 roll drive	3 phase 230/430 volts 60hz electrics
Electrics to NFPA-79 specifications	24VDC control circuit
Safety/emergency stop cable on 3 sides of the machine	Pinch roll starting groove
Overload protected	NEMA premium efficient electric helical gear motor with holding brake for roll rotation
Gearbox lubed for life	Heavy duty all gear drive
Haze gray epoxy and blue enamel finish (V.O.C. compliant)	Sealed ball bearings on all main points
Rolls tilt for cone rolling	Manually operated latch handle with swing out top roll
Accurately machined, compact, streamlined, and all welded steel frame	Variable roll speed 0-20 FPM

Capacities by Model #

Model #	Prebend Capacity at 4X Top Roll Ø	Roll Length	Top Roll Ø
310-2-24	0.06″	24″	2″
310-2.6-24	0.12″	24″	2.6″
310-3-24	0.16″	24″	3″
310-3.5-24	0.16″	24″	3.5″
310-4-24	0.23″	24″	4″
310-2-36	0.035″	36″	2″
310-2.6-36	0.07″	36″	2.6″
310-3-36	0.09″	36″	3″
310-3.5-36	0.13″	36″	3.5″
310-4-36	0.18″	36″	4″
310-5-36	0.31″	36″	5″
310-6-36	0.37″	36″	6″
310-2.6-48	0.04″”	48″”	2.6″”
310-3-48	0.06″”	48″”	3″”
310-3.5-48	0.09″”	48″”	3.5″”
310-4-48	0.13″”	48″”	4″”
310-5-48	0.21″”	48″”	5″”
310-6-48	0.32″”	48″”	6″”
310-3-60	0.05″”	60″”	3″”
310-3.5-60	0.07″”	60″”	3.5″”
310-4-60	0.09″”	60″”	4″”
310-5-60	0.16″”	60″”	5″”
310-6-60	0.25″”	60″”	6″”
310-3.5-72	0.05″”	72″”	3.5″”
310-4-72	0.07″”	72″”	4″”
310-5-72	0.12″”	72″”	5″”
310-6-72	0.19″”	72″”	6″”
310-4-96	0.05″”	96″”	4″”
310-5-96	0.08″”	96″”	5″”
310-6-96	0.13″”	96″”	6″”
310-5-120	0.06″”	120″”	5″”
310-6-120	0.09″”	120″”	6″”
310-6-144	0.07″”	144″”	6″”
