MODELS |
DLN-6200 |

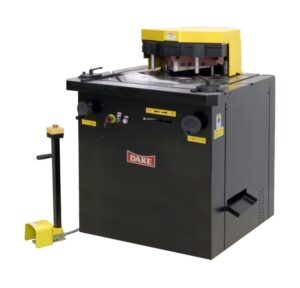

DLN-6220V |
| Maximum Material | 4 Ga. | 4 Ga. |
| Controls | Foot Pedal Switch | Foot Pedal Switch |
| Operation | Foot Switch | Handwheels & Foot Switch |
| Horsepower | 4 HP, 3 Phase 220V | 4 HP, 3 Phase 220V |
| Max Strokes Per Minute | 15 Strokes/min | 15 Strokes/min |
| Angle | 90° (Fixed) | 30° – 140° |
| Max Notch Dimensions | 8.5″ x 8.5″ | 8.5″ x 8.5″ |
| Table Dimensions | 25.5″ x 25.5″ | 37.4″ x 31″ |
| Overall Dimensions | 31.5″ x 25.59″ x 46.85″ | 38.58″ x 36.61″ x 51.2″ |
FEATURES
DLN-6200 |
DLN-6200V |
| 25.5″ x 25.5″ oversized working table with guides | Variable angle |
| 90° Fixed Angle | Capable of notches from 30 to 140° in mild steel & up to 6mm in thickness |
| 15 Strokes per minute | 15 Strokes per minute |
| 8.5″ long blades | 24 Ton Capacity 4 Ga. Mild Steel |
| Operator controlled foot pedal | Cutting length 8.5″ x 8.5″ |
| Table dimensions of 37.4″ x 31.2″ | |
| Long 8.5″ Blades | |
| Handl wheel adjusted blade angle | |
| Foot pedal controlled notching stroke |
STANDARD EQUIPMENT
DLN-6200 |
DLN-6200V |
| Foot pedal switch | Foot pedal switch |
| Long 8.5″ blades | Long 8.5″ blades |
