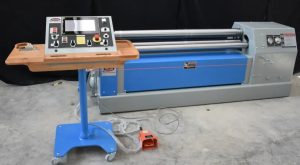

WDM 403/404 Series 4 Roll Plate Rolls

The 403 series is WDM’s original 4-roll plate roll design. This style has crowned rolls; the crown can be customized for a specific material thickness and type. This style also gives you the ability to roll narrow strips, as well as boasting all the other benefits of a traditional 4 roll plate roll. This style goes up to a 7″Ø top roll.

The 404 Series has all the features of the 403 Series with the following exceptions.

Top Roll is an 8in Ø or larger.
Electric gear motor driven rolls which provides fast start, stop, and reverse.
Rolls are driven through helical gear electric motors with brakes.

For a full quote use the contact button below or call!

Standard Features

1045 carbon steel rolls	Hydraulic driven roll which provides instant start, stop, and reverse
NEMA 12 control cabinet with fused power supply	Electrics meet NFPA 79 specifications
230/460-volt 3 phase 50/60 hertz electrics (specify voltage when ordering)	Variable frequency drive providing infinitely variable speed from 0-22 FPM and electronic overload protection
Two roll drive	SKF spherical roller bearings on all main bearings
LSHT type hydraulic drive motor with high volumetric and overall efficiency	Safety cable around perimeter of machine
Beta 4.2 rolling console control. Push button control of main functions and 3 digital readouts to show the position of the 3 lower rolls.	Rolls directly driven or through planetary gear type speed reducers
Machine sets directly on level floor	Ability to roll symmetrical steel sections without additional attachments
Hydraulic operated drop end support

Capacities by Model #

Model #	Prebend Capacity at 4X Top Roll Ø	Roll Length	Top Roll Ø
403-2-2	0.06″	24″	2″
403-2.5-2	0.11″	24″	2.5″
403-3-2	0.16″	24″	3″
403-3.5-2	0.16″	24″	3.5″
403-4-2	0.23″	24″	4″
403-5-2	0.38″	24″	5″
403-2-3	0.04″	36″	2″
403-2.5-3	0.06″	36″	2.5″
403-3-3	0.09″	36″	3″
403-3.5-3	0.13″	36″	3.5″
403-4-3	0.18″	36″	4″
403-5-3	0.31″	36″	5″
403-2.5-4	0.04″	48″	2.5″
403-3-4	0.06″	48″	3″
403-3.5-4	0.09″	48″	3.5″
403-4-4	0.13″	48″	4″
403-5-4	0.21″	48″	5″
403-6-4	0.32″	48″	6″
403-7-4	0.39″	48″	7″
404-8-4	0.53″	48″	8″
404-9-4	0.60″	48″	9″
404-10-4	0.76″	48″	10″
404-11-4	0.94″	48″	11″
404-12-4	1.16″	48″	12″
403-3-5	0.05″	60″	3″
403-3.5-5	0.07″	60″	3.5″
403-4-5	0.09″	60″	4″
403-5-5	0.16″	60″	5″
403-6-5	0.25″	60″	6″
403-7-5	0.34″	60″	7″
404-8-5	0.47″	60″	8″
404-9-5	0.53″	60″	9″
404-10-5	0.68″	60″	10″
404-11-5	0.84″	60″	11″
404-12-5	1.03″	60″	12″
403-3.5-6	0.05″	72″	3.5″
403-4-6	0.07″	72″	4″
403-5-6	0.12″	72″	5″
403-6-6	0.19″	72″	6″
403-7-6	0.27″	72″	7″
404-8-6	0.37″	72″	8″
404-9-6	0.50″	72″	9″
404-10-6	0.62″	72″	10″
404-11-6	0.77″	72″	11″
404-12-6	0.94″	72″	12″
403-4-8	0.05″	96″	4″
403-5-8	0.08″	96″	5″
403-6-8	0.13″	96″	6″
403-7-8	0.19″	96″	7″
404-8-8	0.25″	96″	8″
404-9-8	0.33″	96″	9″
404-10-8	0.42″	96″	10″
404-11-8	0.53″	96″	11″
404-12-8	0.65″	96″	12″
403-5-10	0.06″	120″	5″
403-6-10	0.09″	120″	6″
403-7-10	0.13″	120″	7″
404-8-10	0.19″	120″	8″
404-9-10	0.25″	120″	9″
404-10-10	0.31″	120″	10″
404-11-10	0.39″	120″	11″
404-12-10	0.50″	120″	10″
403-5-12	0.05″	144″	5″
403-6-12	0.07″	144″	6″
403-7-12	0.10″	144″	7″
404-8-12	0.14″	144″	8″
404-9-12	0.19″	144″	9″
404-10-12	0.25″	144″	10″
404-11-12	0.31″	144″	11″
404-12-12	0.38″	144″	12″
