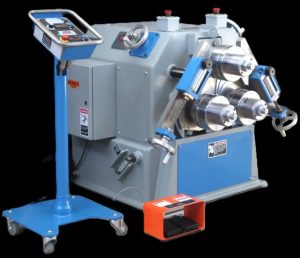

The WDM AR series guide roll system is the key to successful angle bending. WDM machines have guide roll adjustment systems that allow the user to adjust the rolls in all ways necessary to obtain good work pieces. Machines up to 3×3 have manual adjustments via acme screws and handwheel/worm gear arrangements with optional powered adjustments. Machines 4×4 and larger have standard 6-way power guide rolls for optimal performance. The AR series is capable of rolling angle, flat bar, square bar, tee, round bar, pipe, tubing, channel, and I-beam.
For a full quote use the contact button below or call!
Standard Features
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Capacities by Model #
| AR-22 | AR-23 | AR-31 | AR-41 | AR-51 | AR-61 | ||
|---|---|---|---|---|---|---|---|
| Standard Control | AR-3.2 | AR-3.2 | AR-3.2 | AR-520 | AR-520 | AR-520 | |
| Standard HP | 5 | 5 | 7.5 | 15 | 20 | 25 | |
| Roll Diameter | 7″ | 7.5″ | 9″ | 12.5″ | 15″ | 18″ | |
| Weight Approx. (lbs.) | 2,000 | 2,300 | 3,200 | 6,700 | 8,400 | 15,500 | |
| Bending Pressure (US tons) | 12 | 15 | 24 | 40 | 55 | 100 | |
| Main Shaft Diameter | 1.88″ | 2.5″ | 3″ | 5″ | 6″ | 6″ | |
| FPM Rolling Speed Approx. | 0-22 | 0-22 | 0-22 | 0-22 | 0-24 | 0-24 | |
| L x W x H | 38″x48″x42″ | 28″x29″x36″ | 38″x40″x38″ | 48″x50″x58″ | 48″x60″x80″ | 48″x68″x80″ | |
| Section Modulus (symmetrical) | 0.375 | 0.54 | 1.29 | 3.06 | 4.91 | 8.8 | |
 |
Angle Leg Out | 2″x2″x0.25″ – 24″ID | 2″x2″x0.38″ – 24″ID | 3″x3″x0.38″ – 36″ID | 4″x4″x0.5″ – 48″ID | 5″x5″x0.5″ – 60″ID | 6″x6″x5/8″ – 72″ID |
 |
Angle Leg In | 2″x2″x0.13″ – 24″ID | 2″x2″x0.25″ – 30″ID | 2.5″x2.5″x0.38″ – 38″ID | 4″x4″x0.63″ – 60″ID | 4″x4″x0.5″ – 60″ID | 6″x6″x0.38″ – 90″ID |
 |
Flat on Flat | 0.5″x5″ – 9″ID | 0.5″x6″ – 10″ID | 0.88″x6″ – 12″ID | 1.13″x8″ – 17″ID | 1.38″x10″ – 20″ID | 1.63″x12″ – 24″ID |
 |
Flat on Edge | 0.5″x2″ – 20″ID | 0.5″x2.5″ – 25″ID | 0.63″x3.5″ – 35″ID | 0.75″x4.5″ – 45″ID | 0.75″x6″ – 60″ID | 1″x7″ – 70″ID |
 |
Square Bar | 1.25″ – 12.5″ID | 1.5″ – 15″ID | 2″ – 20″ID | 2.5″ – 25″ID | 3″ – 30″ID | 3.5″ – 35″ID |
 |
Tee Leg In | ST2x4.75 – 20″ID | ST2x4.75 – 20″ID | ST3x8.6 – 30″ID | ST4x11.5 – 40″ID | ST5x17.5 – 50″ID | ST6x25 – 60″ID |
 |
Tee Leg Out | ST2x4.75 – 20″ID | ST2x4.75 – 20″ID | ST3x8.6 – 30″ID | ST4x11.5 – 40″ID | ST5x17.5 – 50″ID | ST6x25 – 60″ID |
 |
Round Bar | 1.5″ – 18″ID | 1.75″ – 20″ID | 2.25″ – 27″ID | 2.5″ – 30″ID | 3.5″ – 42″ID | 4.5″ – 54″ID |
 |
Sch 40 Pipe | 1.5″ – 21″ID | 2″ – 28″ID | 2.5″ – 35″ID | 4″ – 56″ID | 4″ – 56″ID | 6″ – 84″ID |
 |
Sch 80 Pipe | 1.25″ – 18″ID | 1.5″ – 21″ID | 2.5″ – 35″ID | 3.5″ – 49″ID | 4″ – 56″ID | 5″ – 70″ID |
 |
Sch 120 Pipe | N/A | N/A | 2″ – 28″ID | 3″ – 42″ID | 3″ – 42″ID | 4″ – 56″ID |
 |
Round Tube | 2″x0.13″ – 30″ID | 2.5″x0.11″ – 38″ID | 3.5″x0.13″ – 53″ID | 5″x0.25″ – 75″ID | 6″x0.18″ – 90″ID | 7″x0.19″ – 105″ID |
 |
Square Tube | 1.5″x0.18″ – 36″ID | 1.75″x0.12″ – 42″ID | 2.5″x0.19″ – 60″ID | 3.5″x0.25″ – 84″ID | 4″x0.25″ – 96″ID | 5″x0.31″ – 120″ID |
 |
Rectangular Tube (HW) | 2″x1.5″x0.1″ – 32″ID | 2.5″x1.5″x0.08″ – 40″ID | 3″x1.5″x0.25″ – 48″ID | 4″x2″x0.25″ – 64″ID | 5″x3″x1/4″ – 80″ID | 6″x3″x5/16″ – 96″ID |
 |
Channel Flange Out | C4x7.25# – 20″ID | C4x7.25# – 20″ID | C6x13# – 26″ID | C8x18.75# – 30″ID | C10x30# – 36″ID | C12x30# – 38″ID |
 |
Channel Flange In | C4x7.25# – 25″ID | C4x7.25# – 25″ID | C6x13# – 33″ID | C8x18.75# – 38″ID | C10x30# – 45″ID | C12x30# – 48″ID |
 |
I-Beam on Flange | S3 x 5.7# – 27″ID | S4x7.7# – 24″ID | S6x17.2# – 32″ID | S8x23# – 38″ID | S10x35# – 44″ID | S12x50# – 50″ID |
 |
I-Beam on Web | N/A | N/A | N/A | S4x9.5# – 92″ID | S5x10# – 115″ID | S6x17.2# – 140″ID |
|
|
|
