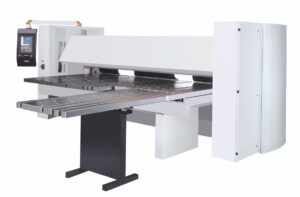

Gigantic!
Straight bends are essential for perfectly folded parts. A sturdy and solid machine design powerfully resists the bending forces. An intelligent crowning system and 120 tons of clamping pressure ensure perfect folded parts on 6 mm mild steel or 4 mm stainless.
GIGAbend Highlights
- Ideal bending solution from 0.5 to 6 mm mild steel
- Large free space for maximum parts design flexibility
- Easy to handle

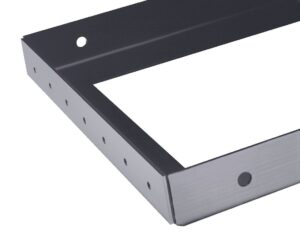

- Bending of panels and profiles
- Bending any angles, radii, open/closed hems
Technical Data
| GIGAbend | RAS 76.40 | RAS 76.30 |
| Working length | 159″ (4060 mm) | 126″ (3200 mm) |
| Material thickness max (400 N/mm²) | 6 ga (5.0 mm) | 1/4″ (6.0 mm) |
| Upper beam upstroke | 19.7″(500 mm) | 19.7″ (500 mm) |
| Upper beam clamping pressure | 120 tons | 120 tons |
| Gauging system (Rectangular gauging system) | 0.39″ – 61″ (10 – 1550 mm) | 0.39″ – 61″ (10 – 1550 mm) |
| Gauging system (J gauging system) | 0.39″ – 159.5″ (10 – 4050 mm) | 0.39″ – 120″ (10 – 3050 mm) |
| Machine dimensions (Rectangular gauging system) | 216″ x 96″ (5480 x 2430 mm) | 182″ x 96″ (4620 x 2430 mm) |
| Machine dimensions (J gauging system) | 216″ x 193″ (5480 x 4890 mm) | 182″ x 155″ (4620 x 3940 mm) |
 |
 |
