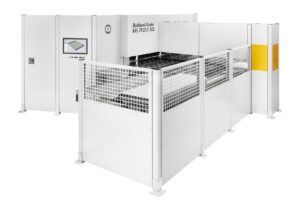

Multibend-Center Eco panel bending machine: Entry into automatic bending
The Multibend-Center ECO is a cost-efficient entry-level solution for automatic bending of panels and boxes that includes all the features of a high-end panel bending machine.
Multibend-Center ECO Highlights
- Manual loading and unloading
- Automatic blank squaring
- Automatic folding sequences, highest level of productivity
- Automatic tool setup
- Highest level of precision and repeatability
- Scratch free bending, no wear of tools
- One-click part programming
- Small floorspace required
Multibend-Center ECO panel bender package includes:
- Manual blank loading station
- Automatic setup of the upper beam tools
- Automatic blank scanning and blank squaring
- Automatic blank transfer to the manipulator
- Automatic rotation and positioning by the manipulator
- Automatic bending up and down
- Tools for the upper beam, bending beam and lower beam
- Roto-foot corner tool for turning in and out of bent flanges
- Automatic transport of the bent parts back to the operator
The total package also includes:
- Bendex Office software for automatic part programming
- CellControl Office Software for special functions and setting up job lists
- Software updates of the Bendex Office software for one year
- Online support for service and application assistance for one year
Optionally the package can be completed with:
- UpDownTools for interrupted bend lines
- Tab tools for bending welding tabs
- Reinforced tools for 2.5 mm mild steel components
Technical Data
| Multibend-Center ECO | RAS 79.26-2 ECO | RAS 79.22-2 ECO |
| Material thickness max (58,000 PSI) | 14 (13) ga (2.0 (2.5) mm) | 14 (13) ga (2.0 (2.5) mm) |
| Box height max (four sides) | 8″ (203 mm) | 8″ (203 mm) |
| Blank length max | 104.7″ (2660 mm) | 88.9″ (2260 mm) |
| Blank width max | 59″ (1500 mm) | 59″ (1500 mm) |
| Machine dimensions | 317″ x 234″ (8050 x 5950 mm) | 285″ x 210″ (7250 x 5500 mm) |
 |
 |
