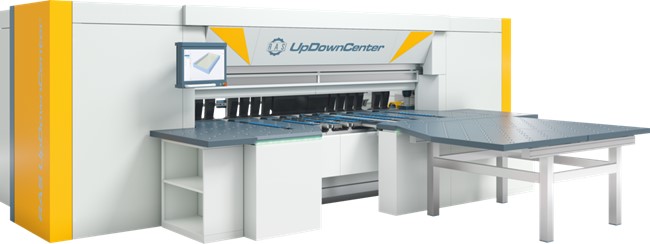

RAS System’s UpDownCenter-2 brings ultimate precision to a project, with automatic folding sequences and dimensional accuracy in bending the parts. This semi-automatic bending center is ideal for panels and boxes with thin and medium material width.
When upgraded with the tool changer, the machine reduces set-up times and increases the productivity of projects.
Features
- Two-channel safety systems
- One-click programming software
- Front and Rear Operation
- Multiple squaring and gauging options
Semi automated panel bender

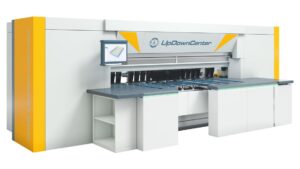

The UpDownCenter-2 is a semi-automatic bending center for panels and boxes up to 4060 mm bending length and up to 400 mm box height. With up to 4 mm bending capacity, it is ideal for thin and medium material thicknesses. The machine can be operated from the gauging but also from the folding beam side. The optional tool changer reduces set-up times and increases productivity especially on jobs with small batch sizes. Besides the up and down folding capability and the automated PosLift part positioning system, another true highlight of the machine is the automatic one-click programming software.
|
 |
Even the first bent part is accurate!

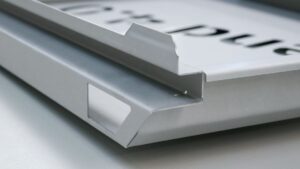

Here are some samples of how accurately the software programs a parts starting from the imported STEP file and how accurately the machine already bends the very first part.
 |
 |
 |
 |
UpDownCenter-2 Highlights
- Machine without tool changer (UpDownCenter-2 basic)
- Machine with quick tool changer (UpDownCenter-2)
- Bending up and down
- Automatic bending sequences
- Work from the gauging side or the folding beam side
- Automatic part programming
- Incredible dimensional and angle accuracy
- Bending of boxes with radii and oblique base shapes (difficult gauging)
- Bending of parts with embosses, large holes etc.
- Medium automation, large part diversity, batch size 1
Technical Data
| UpDownCenter – 2 | RAS 78.43-2 | RAS 78.33-2 |
| Bending direction | UpDown | UpDown |
| Working length | 160″ (4060 mm) | 126″ (3200 mm) |
| Material thickness max (58,000 PSI) | 11 ga (3.0 mm) | 9 ga (4.0 mm) |
| Upper beam open height | 33.4″ (850 mm) | 33.4″ (850 mm) |
| Box height max (four sides) | 15.75″ (400 mm) | 15.75″ (400 mm) |
| Gauging system | PosLift | PosLift |
| Programming | Automatic | Automatic |
| Operation | Front and rear | Front and rear |
| Tool changer | Yes | Yes |
| Machine dimensions (Rectangular gauging system) | 286″ x 139″ (7660 x 3530 mm) | 252″ x 139″ (6400 x 3530 mm) |
| Machine dimensions (J gauging system) | 286″ x 206″ (7660 x 5230 mm) | 252″ x 206″ (6400 x 5230 mm) |
 |
 |
