Key Features & Benefits
Versatile Material Processing -Cuts round tube, rectangular tube, angle iron, and channel material, allowing shops to handle a wide range of fabrication projects with a single machine.
Compact, Space-Saving Design -At just 485 lbs, the COLT provides professional tube-cutting capabilities without requiring a large production footprint.
Built-In Graphics Library -Simplifies programming and setup, helping operators create jobs quickly and reduce training time.
High-Speed Cutting Performance -Achieves cutting speeds up to 157 IPM on tube and 314 IPM on round material, helping maximize production efficiency.
Ideal for Small to Mid-Size Fabricators -Combines affordability, versatility, and precision, making it an excellent solution for job shops, contract manufacturers, and growing fabrication businesses.
Compact Power for Precision Tube Cutting

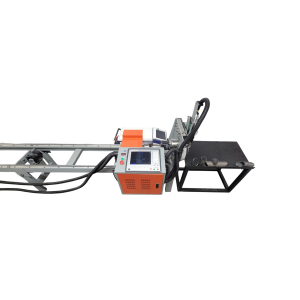

The COLT Laser Tube Cutting Machine delivers precision tube processing in a compact, easy-to-operate package. Designed for shops that need reliable cutting performance without the complexity of a custom system, the COLT provides an affordable entry point into laser tube cutting. Contact us to learn more.
Technical Specifications
| Specification | Details |
| Tube Diameter Capacity | 4″ (round)
4″ (square) |
| Processing Length | 24ft |
| Laser Source | 2kw to 3kw |
| Cutting Accuracy | ±0.011 in |
| Cutting Function | 90° Straight Cutting Only |
| Cutting Speed | Up to 314 IPM |
| Gas Source | Shop air 120 PSI |
| Power | 220V-480V 3-Phase |
| Compatible Material Profiles |
|
 |
 |
