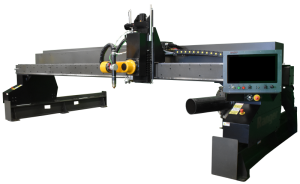

The Ranger III from Lone Star Cutting Solutions is ideal for multiple plasma and oxyfuel stations as well as marking and full plasma beveling. The large heavy-duty rail system can easily be expanded to accommodate additional cutting lengths.
Machine Features
• Gantry – 8” x 8” thick walled square tubing
• Dual Side Helical Rack and Pinion Drive (X,Y) & Servo Drive System
• Distance from top of slats to underside of Gantry – 8 inches
• V-Groove hardened, precision rail system & bearings
• Air assisted transmission to prevent backlash
• Enclosed Cable Track to protect electrical cables and gas hoses (X,Y)
Machine Specifications
• Rapid Traverse Speed – up to 800 ipm
• Vertical Positioning Speed – up to 150 ipm
• Vertical Stroke 8 Inches
• MACHINE Positioning Accuracy – +/- .007
• MACHINE Repeatability – +/- .002
• MACHINE Voltage 220V 30A
Available Sizes: 4’x8′, 5’x10′, 6’x12′, 8’x24′, 10’x20′, and 10’x24′
 |
 |
