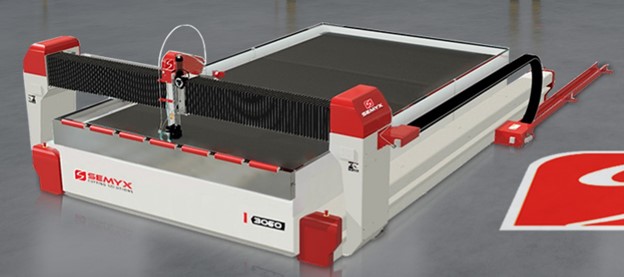

The new and improved I-Series waterjet cutting series is our built to last flagship series that is suitable for large areas. The I-Series waterjet cutting system offers precise cutting of extra-large sheets ranging from 10 ft. to 13 ft. wide by as long as needed, which allows for mass production and cutting of large materials. The I-Series waterjet cutting series allows you to add multiple gantries and additional Z-axis to enable double production on the same machine and higher running speeds. Like all our models, the I-Series series features a central controller for all modules and CAM software enhancements.
Specifications
 Model |
X-Axis
Cutting Stroke |
Y-Axis
Cutting Stroke |
Z-Axis
Cutting Stroke |
Footprint Width | Footprint Length |
| 3040 | 4,000 mm (158″) | 3,048 mm (120″) | 305 mm (12″) | 5,220 mm (205″) | 5,700 mm (225″) |
| 3060 | 6,000 mm (240″) | 3,048 mm (120″) | 305 mm (12″) | 5,220 mm (205″) | 7,900 mm (311″) |
| 3080 | 8,000 mm (320″) | 3,048 mm (120″) | 305 mm (12″) | 5,220 mm (205″) | 10,000 mm (394″) |
| 30100 | 10,000 mm (394″) | 3,048 mm (120″) | 305 mm (12″) | 5,220 mm (205″) | 12,000 mm (472″) |
| 30120 | 12,000 mm (480″ | 3,048 mm (120″) | 305 mm (12″) | 5,220 mm (205″) | 13,980 mm (550″) |
| 4040 | 4,000 mm (158″) | 4,064 mm (160″) | 305 mm (12″) | 6,210 mm (245″) | 5,700 mm (225″) |
| 4060 | 6,000 mm (240″) | 4,064 mm (160″) | 305 mm (12″) | 6,210 mm (245″) | 7,900 mm (311″) |
| 4080 | 8,000 mm (320″) | 4,064 mm (160″) | 305 mm (12″) | 6,210 mm (245″) | 10,000 mm (394″) |
| 40100 | 10,000 mm (394″) | 4,064 mm (160″) | 305 mm (12″) | 6,210 mm (245″) | 12,000 mm (472″) |
| 40120 | 12,000 mm (480″ | 4,064 mm (160″) | 305 mm (12″) | 6,210 mm (245″) | 13,980 mm (550″) |
Features
| Multiple Gantries | Customized Solutions |
| Separated & Rigid Tank | NEXEN Roller Pinion System (RPS) |
| Bridge Rigidity | IP67 Cable System |
| Special Stainless Steel Tank Covers |
 |
 |
