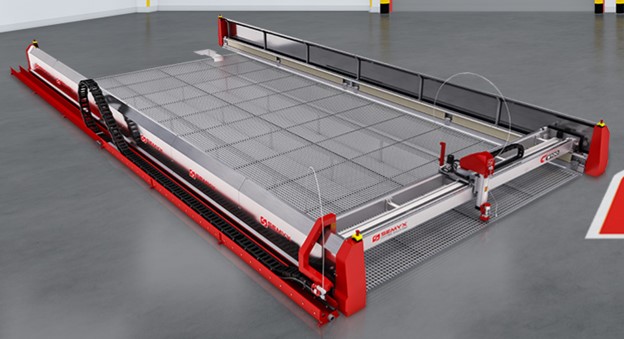

The C-Series waterjet cutting series is made to order. Sizes may vary based on customer needs. Machines are available as both tank and pit installations.
The C-Series waterjet cutting series is best suited for large areas. The C-Series waterjet cutting system offers (precise) cutting of extra large sheets up to 16 feet wide which allows for mass production and cutting of large materials. The C-Series waterjet cutting series allows you to add additional cutting heads to enable double production on the same machine and higher running speeds. Like all our models, the C-Series features a central controller for all modules and CAM software enhancements.
The C-Series is available in 2, 3, 4, & 5 meters wide by 2-30 meters long. The C-Series is specially designed for textile applications and has been used on fields for the MLS, NCAA, and NFL.
Specifications
| Model | X-Axis Cutting Stroke mm (in) | Y-Axis Cutting Stroke mm (in) | Z-Axis Cutting Stroke mm (in) | Footprint W X L mm (in) |
| C 2020 | 2000 mm (78″) | 2032 mm (80″) | 305 mm (12″) | 4060 (160″) X 3490 (138″) |
| C 3020 | 2000 mm (78″) | 3048 mm (120″) | 305 mm (12″) | 5220 (205″) X 3490 (138″) |
| C 4020 | 2000 mm (78″) | 4064 mm (160″ | 305 mm (12″) | 6210 (245″) X 3490 (138″) |
| C 5020 | 2000 mm (78″) | 5080 mm (200″) | 305 mm (12″) | 7280 (300″) X 3490 (138″) |
| C 2040 | 4000 mm (158″) | 2032 mm (80″) | 305 mm (12″) | 4060 (160″) X 5700 (225″) |
| C 3040 | 4000 mm (158″) | 3048 mm (120″) | 305 mm (12″) | 5220 (205″) X 5700 (225″) |
| C 4040 | 4000 mm (158″) | 4064 mm (160″ | 305 mm (12″) | 6210 (245″) X 5700 (225″) |
| C 5040 | 4000 mm (158″) | 5080 mm (200″) | 305 mm (12″) | 7280 (300″) X 5700 (225″) |
| C 2060 | 6000 mm (240″) | 2032 mm (80″) | 305 mm (12″) | 4060 (160″) X 7900 (311″) |
| C 3060 | 6000 mm (240″) | 3048 mm (120″) | 305 mm (12″) | 5220 (205″) X 7900 (311″) |
| C 4060 | 6000 mm (240″) | 4064 mm (160″ | 305 mm (12″) | 6210 (245″) X 7900 (311″) |
| C 5060 | 6000 mm (240″) | 5080 mm (200″) | 305 mm (12″) | 7280 (300″) X7900 (311″) |
| C 2080 | 8000 mm (320″) | 2032 mm (80″) | 305 mm (12″) | 4060 (160″) X 10000 (394″) |
| C 3080 | 8000 mm (320″) | 3048 mm (120″) | 305 mm (12″) | 5220 (205″) X 10000 (394″) |
| C 4080 | 8000 mm (320″) | 4064 mm (160″ | 305 mm (12″) | 6210 (245″) X 10000 (394″) |
| C 5080 | 8000 mm (320″) | 5080 mm (200″) | 305 mm (12″) | 7280 (300″) X 10000 (394″) |
| C 20100 | 10000 mm (394″) | 2032 mm (80″) | 305 mm (12″) | 4060 (160″) X 12000 (472″) |
| C 30100 | 10000 mm (394″) | 3048 mm (120″) | 305 mm (12″) | 5220 (205″) X 12000 (472″) |
| C 40100 | 10000 mm (394″) | 4064 mm (160″ | 305 mm (12″) | 6210 (245″) X 12000 (472″) |
| C 50100 | 10000 mm (394″) | 5080 mm (200″) | 305 mm (12″) | 7280 (300″) X 12000 (472″) |
| C 20120 | 12000 mm (480″) | 2032 mm (80″) | 305 mm (12″) | 4060 (160″) X 13980 (550″) |
| C 30120 | 12000 mm (480″) | 3048 mm (120″) | 305 mm (12″) | 5220 (205″) X 13980 (550″) |
| C 40120 | 12000 mm (480″) | 4064 mm (160″ | 305 mm (12″) | 6210 (245″) X13980 (550″) |
| C 50120 | 12000 mm (480″) | 5080 mm (200″) | 305 mm (12″) | 7280 (300″) X13980 (550″) |
| Maximum Height | 3750 mm (148″) |
| Cutting speed | 0 – 5000 mm / min (0 – 200″/min) |
| Free speed | 16000 mm/min (630″/min) |
| Acceleration | 0.500 m/s2 |
| Accuracy mm (in) | 0.1 mm (0.004″) |
| Linear straightness accuracy (in) | 0.15 mm (0.006″) |
| Repeatability mm (in) | +0.05 mm (+0.002″) |
| Motion type, X, XX, Y, Z Axes | X, XX, Y = Helical Rack & Pinion Z = Ball screw |
| Anti backlash system | Spring system |
| Lubrication Ball Screws & Pinion | Separated Central Lubrication Systems |
| Lubrication Linear Guides | Self Lubricating Cartridges |
| Motion parts protection X axis | Steel powder coated covers |
| Motion parts protection Y axis | Optional |
| Recommended Pump | 50 HP |
| Abrasive tank capacity | N/A |
| Abrasive feeder | N/A |
| Control Type | Multiple centralized CNC |
| Drivers for X, XX, Y, Z | AC Servo Motors |
| CAM software | Included |
| Multiple gantry | Optional |
| Water tank | Powder coated Steel / stainless steel |
| Slats frame material | Galvanized steel |
| Slats material / pitch | Grid / Bearing Bar, Pitch 1X1 in, G. Steel |
| Fine mesh | N/A |
| Maximum capacity load | 300 kg/sqm – 62 lbs./sqf |
| Lifting roller | N/A |
Features
| Helical Rack & Pinion in All Axes |
| Cutting with Pure Water |
| Higher Speed and Acceleration |
| Pit Installation |
 |
 |
