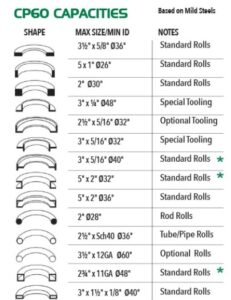

*On some sections for limited quantities it may be possible to use standard rolls. For optimum results or if production runs are required, it is necessary to use optional rolls and or optional accessories.
2 Machine Versions
| CP60H | CP60-REV | |
| Hydraulic Adjust Top Roll, 2 Driven Rolls, LED w/DP7 Touch Screen, Auto-Repeat Controls. | Hydraulic Adjust Top Roll, 2 Driven Rolls, LED w/DP7 Touch Screen, Auto-Repeat Controls & Infinitely Variable Speed Drive. |
Specifications
| Shaft OD | 2-3/8″ (60 mm) |
| Roll OD | 8.85″ Nominal |
| Drive | 3.4 HP 220V/60Hz |
| Pump | 2.0 HP 220V/60Hz |
| Repeat | Automatic + LED |
| Powered Rolls | 2 Lower Rolls Driven |
| Dimensions | 37″ x 51″ x 64″ H |
| Ship Weight | 2,425 lbs. approximately |
Standard Features & Benefits Found only on Eagle Benders
| Solid Steel Main Frames, CNC Machined and Stress Relieved, are the heaviest in the industry and eliminate troublesome castings. Our machines do not require external shaft tie bars when bending heavy sections. |
| Limited Lifetime Warranty on all of our machine main frames is standard. |
| NEW DP7 Auto-Repeat Programmable Control with 40-position memory on hydraulic versions for repeat bending and will Display Your Bending Radius when used with our Optional Digital Radius Instrument. |
| Large High Brightness LED Readout on all models to monitor the bending roll position. |
| CP60’s Operate in Both Vertical and Horizontal Positions. |
| Lower Shafts Driven and use knurled tooling for optimal traction, top shaft is idle and uses smooth surfaced tooling |
| Standard Universal Tooling Set has 18 components and manufactured from Hardened Tool Steel 55HRC. |
| Hardened Steel Shafts are journaled Dual Tapered Roller Bearings. |
| Patented Z-Block Top Journal increases rigidity for truer to plane rolling. |
| Hardened/Sintered Guides & Ways with Adjustable Gibbs on every Eagle Bender. |
| Heavy Duty Lateral Material Guides with quadruple bearings on each roller help keep your parts straight. |
| Large Thrust Adjustment Studs on Guides have knurling for quick adjustment plus recessed hex tail for use with a socket ratchet when under extreme loads. |
| Dual Foot Pedal Controls for forward/reverse rolling have Steel Protective Covers. |
| Anti-Pinch’ Mill Scale Covers protect internal components from mill scale and are an extra safety feature. |
| Concealed Oil Lines on the hydraulic ram cannot be damaged by accident, nothing is exposed. |
| Dual Emergency Stop Buttons 1 on machine + 1 on the console for enhanced operator safety. |
| Flush Mounted Electrical Panels are out of harm’s way in your shop environment. |
| Easy Access Tool Storage Compartment in the machine base for convenience. |
| Mobile Control Console with long trailing lead allows safe operator distance from the work-piece. |
| Renowned Brand Name OEM Components are non-proprietary and available worldwide. |
 |
 |
