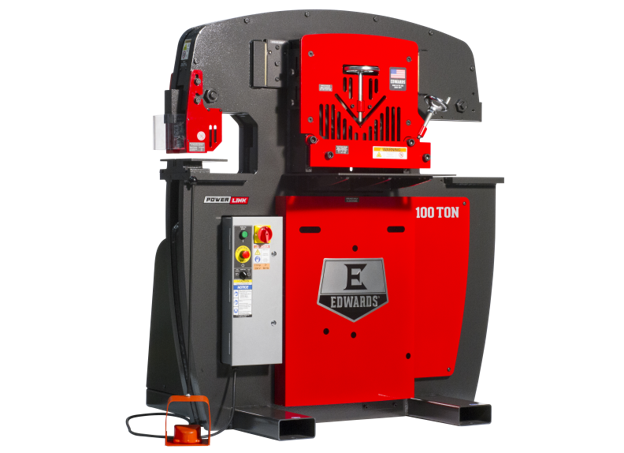

Our 100 Ton Ironworker provides optimal power and adaptability to handle any project with its four workstations, 13 interchangeable attachments in the open workstation, and 17 accessories to adapt the Ironworker to your needs. Ideal for larger fabrication shops or those jobs requiring heavier materials, this compact machine that allows for fast and easy transitions between fabrication operations: punch, shear, notch, bend, or cope all in one machine. The Angle Shear blades have 2 corner radii and are made of precision tool steel with 2 cutting edges, while the Flat Bar Shear blades are made of precision machined, high-quality tool steel with 4 cutting edges. The PowerLink™ System increases your capabilities by turning your Ironworker into a power source for our line of Hydraulic Tools.
Specifications
| Stock Number | ED9-IW100-3P230-A |
| Amps | 22 |
| Angle Shear Max Capacity 1/2″ | 6″ x 6″ |
| Angle Shear Work Height | 43-15/16″ |
| Coper Notcher Max Capacity | 2-1/2″ x 6″ x 1/2″ |
| Coper Notcher Work Height | 42″ |
| Flat Bar Shear Max Capacity 1″ | 10″ |
| Flat Bar Shear Max Capacity 3/4″ | 14″ |
| Flat Bar Shear Max Capacity | 3/4″ x 14″, 1″ x 10″ |
| Flat Bar Shear Max Round Capacity | 1-1/4″ |
| Flat Bar Shear Max Square Capacity | 1-1/4″ |
| Flat Bar Shear Rating | 100 Tons |
| Flat Bar Shear Work Height | 37″ |
| Hydraulic Pump | 10-1/2 GPM |
| Hydraulic Reservoir | 17 Gallons |
| Hydraulics (GPM) | 10-1/2 |
| Hydraulics | 3500 PSI |
| Motor | 7.5 HP 3 ~ 230V |
| Motor Speed | 1765 RPM |
| Open Workstation Throat Depth | 14-3/4″ |
| Open Workstation Work Height | 37″ |
| Overall Dimensions | 45″ L x 56-1/8″ W x 61-11/16″ H |
| Prop 65 | Cancer and Reproductive Harm |
| Punch Max Capacity | 1-1/16″ diam in 1″ Mild Steel |
| Punch Open Height | 8-3/4″ |
| Punch Rating | 100 Tons |
| Punch Shut Height | 6-15/16″ |
| Punch Stroke | 1-13/16″ |
| Punch Work Height | 39-1/16″ |
| Rating | 100 Tons |
| Reservoir | 17 gallons |
| Shipping Dimensions | 46″ L x 69″ W x 67″ H |
| Type | Open Station |
| Valve Pressure | 3500 PSI |
| Warranty | 1 Year |
| Gross Weight | 4,650 pounds |
| Net Weight | 4,557 pounds |
