Priced at $4,725.00

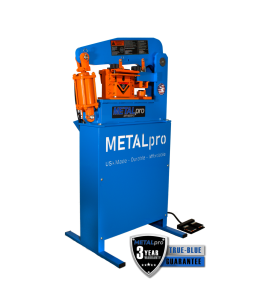

The MP4000FS is a 40-ton Ironworker, powered by a 110V, single phase standard wall outlet or generator. Its compact, sturdy design boasts 40 tons of pressure at the punch station and 20 tons of pressure at the central workstation. This allows the user to punch a 3/4” round hole through ½” mild steel (capable of larger holes through thinner mild steel). METALpro’s footswitch design controls a hydraulic power system.
This machine comes standard equipped with METALpro’s 6 inch, 3 in 1 combination shear. The shear consists of a flat bar shear, angle iron shear and round/square rod shear, built into one singular unit. METALpro stands behind their machines with a three-year limited manufacturing warranty. All METALpro machines and accessories are proudly made in the USA and built to last.
| 40 Ton Ironworker, 110/120V 1PH | |
| Country of Origin | USA |
| Capacity | 40 tons |
| Warranty | 3 Years |
| Shear Capacity – Flat Bar | 1/4″ x 6″, 3/8″ x 4″ |
| Shear Capacity – Angle Iron | 1/4″ x 3″ x 3″ |
| Shear Capacity – Rod | 3/4″ |
| Forming Capacity | Up to 1/2″ Mild Steel *brake sold separately |
| Forming Tonnage Capacity | 20 tons |
| Punch Capacity | Up to 1/2″ Mild Steel |
| Power | 110/120V Single Phase |
| Motor | 1.5 horsepower |
| Hydraulic Pressure | 2900 psi |
| Throat Depth | 3-3/4″ |
| Operating Weight | 475 lbs. |
| Machine Dimensions | 24″ x 30.5″ x 58″ |
| OSHA/ASNI B11-8 | Approved |
*All METALpro accessories can be used across all Ironworker models. (MP45PSP on 40 ton models is the only exception)
*ALL METALpro MACHINES ARE RATED FOR MILD STEEL
UL Listed & Approved for Sale in Canada
 |
 |
