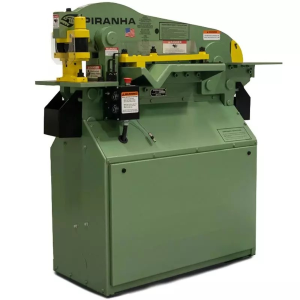

Piranha P-50 Ironworker

Piranha P-50 ironworker machines are the entry-level of the iconic line of Piranha hydraulic ironworker machines, but they don’t lack the toughness and precision that is expected from a Piranha Ironworker. They are just the right tool for many jobs, but if you need more, check out our full line of ironworker machines.

• Industry leading cycle times—punch holes in less time than other ironworkers.
• Urethane Strippers—Results in less part distortion, faster cycle times, no need for stripper height adjustment.
• Integrated notching station—Low shear removes fillet for precise, burr-free cuts and clean notches.
• Ergonomics—Convenient work height and visibility for all stations. The single work height also provides added benefits when using roller feed tables.

Standard Features

1. Urethane Stripper Attachment- keeps material flat through the punching process, eliminating.
   distortion.  The shorter required stroke gives you a faster punching cycle.
2. Mechanical Shear Hold-downs- clamps material at change of material thickness.  Part movement is eliminated by clamping the part throughout the entire shearing cycle.
3. Visibility- a direct line of sight over the hold down bar allows the operator to easily and accurately line up cuts to the shear blades.
4. Flat Bar Shear- the low rake angle shear design results in flatter and higher quality sheared parts.  Shear blades have four usable edges giving you a longer life and less expensive blades.
5. Angle Shear- the square upper angle knife has four cutting radius to better fit the angle being sheared, giving you lower distortion and a higher quality cut.
6. Coper Notcher- the low rake angle blade keeps part flat and under control during notching.

MAXIMUM SPECIFICATIONS (rated on mild steel)
