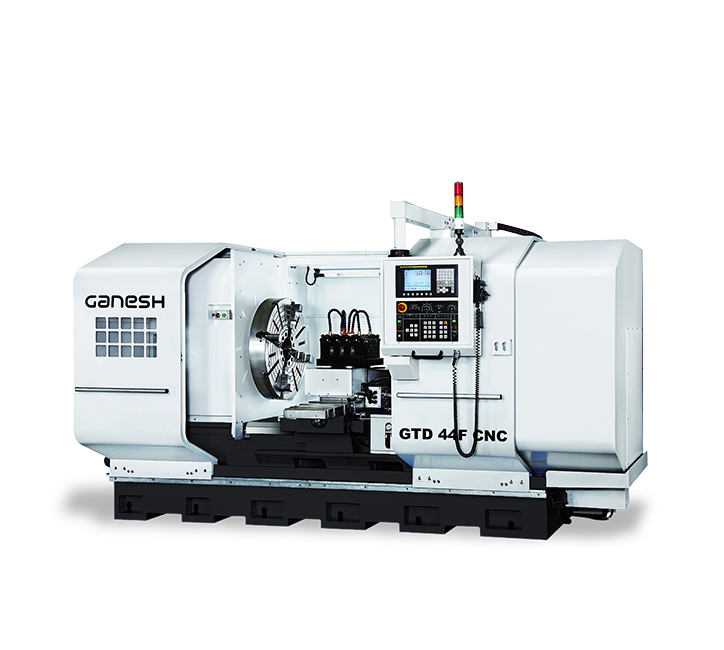

GANESH GTD-44-52 Heavy Duty Facing Lathe
Features
| * Automatic 4-way tool post standard, 8 & 12 station vertical turrets are available |
* Built in high-capacity coolant system to flush away chips and extend tool life |
| * Full splash guard for chip and coolant containment |
* Large fluorescent work light |
| * Link-Belt style rear discharge chip conveyor included |
* 3-light machine condition display lamp |
| * Inch/Metric threading, left or right-hand threading, single or multiple start threading |
|
Specifications
| Capacity & Dimensions |
GTD-44F CNC |
| Swing over Bed |
44″ (1120mm) Optional 52″ (1300mm) |
| Swing over Cross Slide |
23.63″ (600mm) Optional 31.5″ (800mm) |
| Bed Width |
31.5″ (810mm) |
| Spindle |
|
| Spindle Motor Horsepower |
30 HP (22kw Fanuc) |
| Spindle Speed |
6-500 rpm in 4-automatically selectable gear ranges |
| Gear Ranges 4-infinitely variable speed ranges |
6-35 rpm, 19-112 rpm, 70-350 rpm, 226-500 rpm |
| Spindle Bore |
6″ (152mm) (Optional 9″, 10″, and 12″ available) |
| Spindle Nose |
A2-11 (Optional A2-15 / A2-20) |
| Axis |
|
| X-Axis Cross Slide Travel (w/standard 4-position turret) |
21.66” (550 mm) (25.59” 650 mm with 52” swing) |
| X-Axis Ballscrew / Servo Motor |
40mm Pitch 10mm / 5.3 HP (4kw) Servo motor |
| Z-Axis travel |
39.37” (1000 mm) chuck and turret type may reduce travel |
| Z-Axis Ballscrew / Servo Motor |
63 mm Pitch 10 mm / 5.3 HP (4 kw) Servo motor |
| X and Z Axis rapid feed rate |
196″/min (5,000mm/min) |
| X and Z Axis cutting feed rate |
118″/min (3,000/min) |
| Minimum input unit |
0.0001″ (0.001mm = 40 millionth of an inch) |
| Tool Turret |
|
| Turret Tool Stations (10 & 12 station turrets optional) |
4 Station tool turret with any mix of ID and OD tools |
| OD Tool Size |
40mm x 40mm (1.57″ x 1.57″) |
| ID Tool Holder Bore (4 ID Toolholders included) |
50mm (1.97″) |
| Specifications |
|
| Machine Dimensions – 44” swing capacity (L x W x H) |
167″ x 99″ x 84″ (4,242 x 2,515 x 2,134mm) |
| Machine Dimensions – 52” swing capacity (L x W x H) |
167″ x 103″ x 84″ (4,242 x 2,616 x 2,134mm) |
| Cooling System |
1.7 HP (1.275kw) coolant pump |
| Electrical needs – Fanuc 0i-TF, Drives & Motors |
220 vac / ±5% / 3 Phase / 60 Hz |
| Warranty – 1 Year Machine |
2 Year FANUC control and drives |
Machines need stable 220 Volts, 3 Phase – Please use appropriate transformers or voltage stabilizers.
