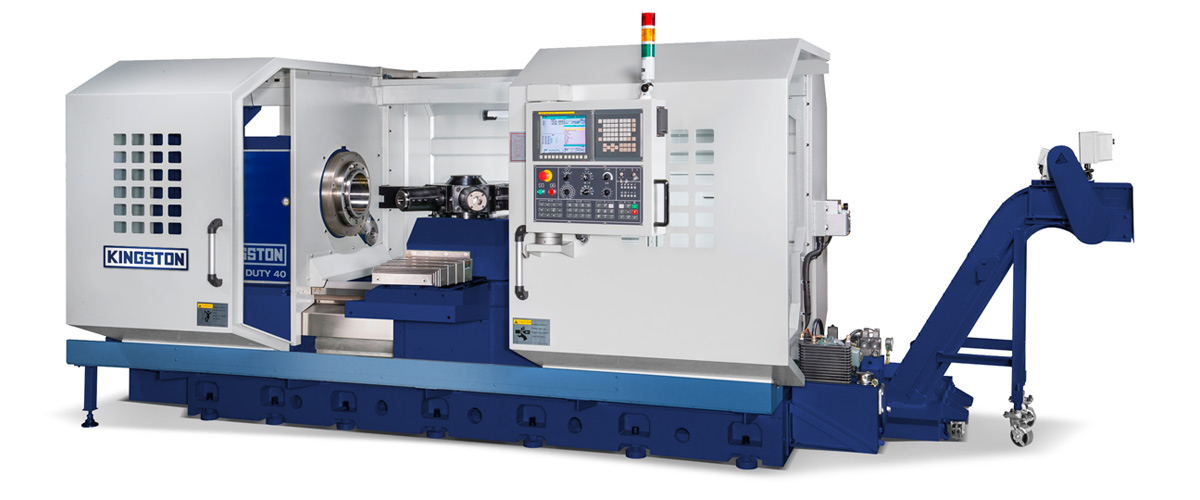

Kingston’s CK Chucker is a rough turning beast that excels at high-volume facing, boring, and drilling of large-diameter workpieces. The powerful H6 350 turret sits atop a specially designed carriage with a larger contact surface area and uniquely designed box way cross slide. The heavily ribbed one-piece casting allows for high loading capacity, extreme rigidity, and vibration buffering. All of this and the 28″ wide 2 V-way bed provide the unsurpassed stability and heavy cutting capability Kingston built its name on. The Chucker comes equipped with a 4-speed headstock for maximum torque and comes front- and rear-chuck ready.
Specifications
| Capacity | Chucker 9 | Chucker 12 | Chucker 14 |
| Swing Over Bed | 40″ | 34″ | 34″ |
| Distance Between Centers | 50″ | 70″ | 70″ |
| Maximum Cutting Diameter | 33” | 27″ | 27″ |
| Maximum Cutting Length | 41.7″ | 63.8″ | 63.8″ |
| Width of Bed | 28” | 28″ | 28″ |
| Headstock | Chucker 9 | Chucker 12 | Chucker 14 |
| Spindle Bore | 9.25″ | 12.5″ | 14.7″ |
| Spindle Motor | 40 / 50 HP (30 min) | 40 / 50 HP (30 min) | 40 / 50 HP (30 min) |
| Type of Spindle Nose | A2-15 | A2-20 | A2-20 |
| Height Floor to Spindle Center | 49.6” | 49.6″ | 49.6″ |
| Gear Box | Chucker 9 | Chucker 12 | Chucker 14 |
| Number of Speed Ranges | 4 | 4 | 4 |
| Spindle Speed (RPM) | 6 – 600 | 10 – 400 | 10 – 300 |
| Turret | Chucker 9 | Chucker 12 | Chucker 14 |
| H6 350 | H6 350 | H6 350 |
| Traverse | Chucker 9 | Chucker 12 | Chucker 14 |
| Max Stroke X-Axis | 19.7” | 19.7″ | 19.7″ |
| Max Stroke Z-Axis | 47″ | 69.7″ | 69.7″ |
| Rapid Traverse X-Axis | 236 in / mm | 236 in / mm | 236 in / mm |
| Rapid Traverse Z-Axis | 314 in / mm | 314 in / mm | 314 in / mm |
| Motor | Chucker 9 | Chucker 12 | Chucker 14 |
| Servo Motor X-Axis | 5.3 HP | 5.3 HP | 5.3 HP |
| Servo Motor Z-Axis | 9.4 HP | 9.4 HP | 9.4 HP |
| Ball Screw | Chucker 9 | Chucker 12 | Chucker 14 |
| X-Axis | Ø1.26”, P=5 | Ø1.26”, P=5 | Ø1.26”, P=5 |
| Z-Axis | Ø2.5”, P=10 | Ø2.5”, P=10 | Ø2.5”, P=10 |
| Dimensions | Chucker 9 | Chucker 12 | Chucker 14 |
| Floor Space (L x W) | 236” x 103” | 255″ x 103″ | 255″ x 103″ |
| Weight (lbs.) | Chucker 9 | Chucker 12 | Chucker 14 |
| 25,520 | 26,000 | 27,500 |
| Total Power Required | Chucker 9 | Chucker 12 | Chucker 14 |
| 60 KVA | 60 KVA | 60 KVA |
| STANDARD FEATURES | OPTIONAL ACCESSORIES |
| Bore: 9.25″, 12.5″, or 14.7″ | Optional V8 Turret Instead of H6 Turret |
| Swing: 34″ or 40″ | 23.5″ Steady Rest (min. 40″ Swing) |
| 28″ Bed Width, One-Piece Casting | Additional 13.7″ Steady Rest |
| Box Way Cross Slide on Carriage | 9.8″ Follow Rest |
| H6 350 Turret with 3″ Boring Bar Holder | Roller Bracket (2-Point Roller Rest) |
| Headstock Cooling System | 6″ Boring Bar Support with 4″ Sleeve |
| Front Chip Pan and Rear Chip Conveyor | High Pressure Coolant System (16 Bar) |
| Fanuc 0iTF Controller with Manual Guide i, 10.4″ LCD Monitor | Fanuc Arbitrary Speed Threading |
| No Tailstock | Manual, Hydraulic, & Air Chucks |
 |
 |
