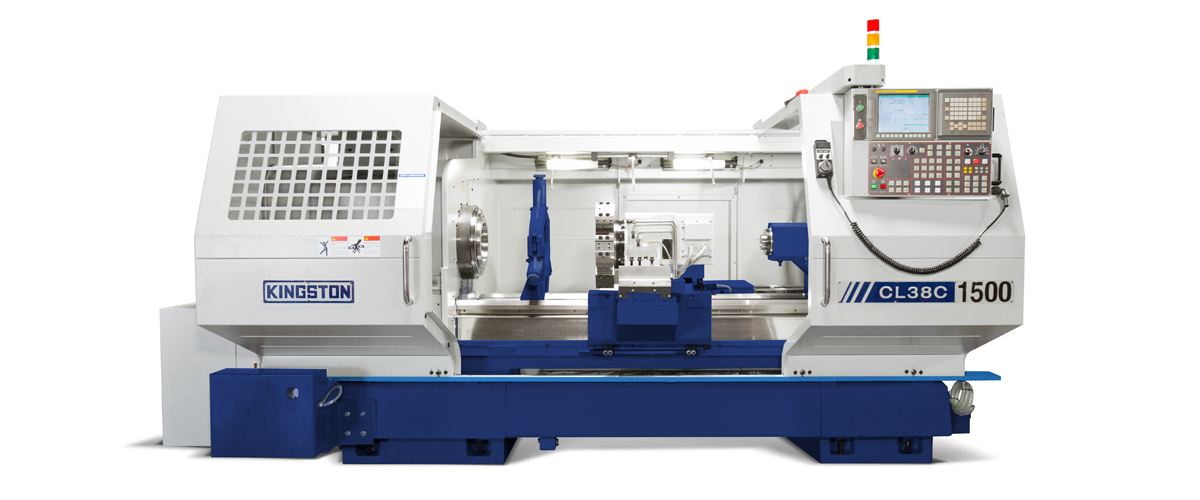

Kingston’s versatile CL38 model is designed for universal workpieces in a variety of industries, including energy, mining, textile, paper, and transportation. The CL38 features 26” swing, a choice of 4.7” or 7.3” bore, and lengths from 40” – 160″. It is equipped with a powerful 30 HP spindle motor, a sub-spindle tailstock ready to mount a chuck, and both V8 and H6 servo turrets – with a maximum cutting diameter of 14.5” between turrets. This flexibility and ease of use make the CL38 one of our most popular CNC models.
Specifications
| Capacity | CL38A | CL38C |
| Swing Over Bed | 26″ | 26″ |
| Maximum Cutting Diameter | 14.5″ | 14.5″ |
| Distance Between Centers | 40″ / 60″ / 80″ / 120″ / 160″ | 40″ / 60″ / 80″ / 120″ / 160″ |
| Width of Bed | 18″ | 18″ |
| Headstock | CL38A | CL38C |
| Spindle Bore | 4.7″ | 7.3″ |
| Spindle Motor | 25 HP / 30 HP (30 min) | 25 HP / 30 HP (30 min) |
| Type of Spindle Nose | A2-11 | A2-15 |
| Gear Box | CL38A | CL38C |
| Number of Speed Ranges | 2 | 2 |
| Spindle Speed (RPM) | 6 – 1600 | 3 – 1000 |
| Turret | CL38A | CL38C |
| Standard | V8 Hydraulic & H6 Servo | V8 Hydraulic & H6 Servo |
| Traverse | CL38A | CL38C |
| Max. Stroke X-Axis | 21.2″ | 21.2″ |
| Max. Stroke Z-Axis | 37.4″ / 57.1″ / 76.8″ / 126.8″ / 164.2″ | 37.4″ / 57.1″ / 76.8″ / 126.8″ / 164.2″ |
| Rapid Traverse X-Axis | 394″/min | 394″/min |
| Rapid Traverse Z-Axis | 394″/min | 394″/min |
| Motor | CL38A | CL38C |
| Servo Motor X-Axis | 3.6 HP | 3.6 HP |
| Servo Motor Z-Axis | 5.4 HP | 5.4 HP |
| Ball Screw | CL38A | CL38C |
| X-Axis | Ø1.41″, P6 | Ø1.41″, P6 |
| Z-Axis | Ø1.97″, P8 (80″) / P12 (120″) / P16 (160″) | Ø1.97″, P8 (80″) / P12 (120″) / P16 (160″) |
| Tailstock | CL38A | CL38C |
| Tailstock Quill Center | M.T. #5 | M.T. #5 |
| Tailstock Quill Diameter | Ø 5.9″ | Ø 5.9″ |
| Tailstock Quill Travel | 8.6″ | 8.6″ |
| Dimensions | CL38A | CL38C |
| Height | 79″ | 79″ |
| Length x Width | 210″ / 228″ / 248″ / 273″ / 329″ x 91″ | 210″ / 228″ / 248″ / 273″ / 329″ x 91″ |
| Weight | CL38A | CL38C |
| in pounds | 14,080 / 14,960 / 16,280 / 18,480 / 22,220 | 14,080 / 14,960 / 16,280 / 18,480 / 22,220 |
| Total Power Required | CL38A | CL38C |
| KVA | 35 | 35 |
| STANDARD FEATURES | OPTIONAL ACCESSORIES |
| Bore: 4.7″ or 7.3″ | Sauter V12 Live Tooling Turret + 2.5º C-Axis Spindle Indexing |
| Swing: 26″ | 15.9″ Steady Rest |
| C.C.: 40″ – 160″ | Additional 9.25″ Steady Rest |
| 25 HP / 30 HP (30 min) | 4.75″ Follow Rest |
| Rear Chuck Adapter for CL38C (7.3″ Bore) | A2-11 Rear Chuck Adapter for CL38A (4.7″ Bore) |
| V8 Front & H6 Rear Turrets | Boring Bar Support on Cross Slide |
| 9.25″ Steady Rest with Roller Jaws | Extra High Pressure Coolant Pump |
| Rotary Tailstock with Chuck Mounting Capability | Fanuc Arbitrary Speed Threading |
| Hydraulic & Manual Quill Movement | Full Enclosure |
| Coolant System w/6-Bar Pressure | Manual, Hydraulic, & Air Chucks |
| Water Spray Gun for Chip Cleanup | |
| Rear Chip Conveyor | |
| Fanuc 0iTF Plus Controller with Manual Guide i, 10.4″ LCD Monitor |
 |
 |
