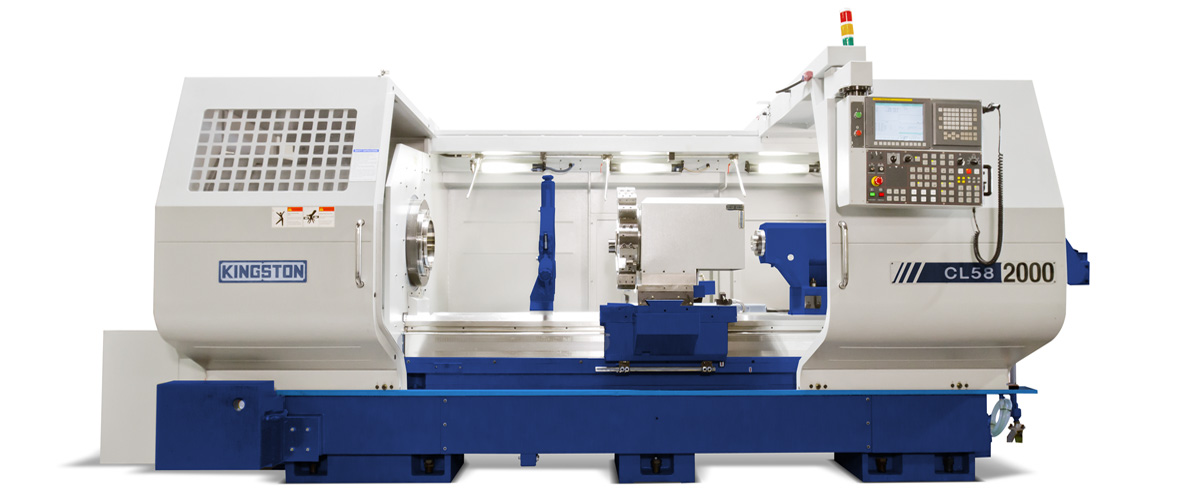

Kingston’s CL58 model builds upon our popular CL38 by stepping up its power and capacity to handle larger and longer workpieces. This versatile front- and rear-chuck ready machine features a front V8 Turret, 40 HP Motor, and wider 22″ 2 V-way bed for optimal cutting performance. Customize your CL58 with a 7.3”, 10”, or 14.7″ spindle bore, H6 rear turret and lengths from 80” — 240”.
Specifications
| Capacity | CL58C | CL58D | CL58E |
| Swing Over Bed | 35″ (39″, 43″ Opt.) | 35″ (39″, 43″ Opt.) | 35″ (39″, 43″ Opt.) |
| Swing Over Cross Slide | 20.4″ | 20.4″ | 0.4″ |
| Maximum Cutting Diameter – 2 Turrets | 17.9″ | 17.9″ | 17.9″ |
| Distance Between Centers | 80″ / 120″ / 160″ / 200″ / 240″ | 80″ / 120″ / 160″ / 200″ / 240″ | 80″ / 120″ / 160″ / 200″ / 240″ |
| Width of Bed | 22″ | 22″ | 22″ |
| Headstock | CL58C | CL58D | CL58E |
| Spindle Bore | 7.3″ | 10.1″ | 14.7″ |
| Spindle Motor | 30 HP / 40 HP (30 min) | 30 HP / 40 HP (30 min) | 30 HP / 40 HP (30 min) |
| Type of Spindle Nose | A2-15 | A2-15 | A2-20 |
| Gear Box | CL58C | CL58D | CL58E |
| Number of Speed Ranges | 2 | 2 | 2 |
| Spindle Speed (RPM) | 3 – 1000 | 3 – 650 | 4 – 450 |
| Turret | CL58C | CL58D | CL58E |
| Standard | V8 Hydraulic & H6 Servo (Opt.) | V8 Hydraulic & H6 Servo (Opt.) | V8 Hydraulic & H6 Servo (Opt.) |
| Traverse | CL58C | CL58D | CL58E |
| Max. Stroke X-Axis | 20.5″ | 20.5″ | 20.5″ |
| Max. Stroke Z-Axis | 76.8″ / 126.8″ / 164.2″ / 211.0″ / 242.7″ | 76.8″ / 126.8″ / 164.2″ / 211.0″ / 242.7″ | 76.8″ / 126.8″ / 164.2″ / 211.0″ / 242.7″ |
| Rapid Traverse X-Axis | 394″/min | 394″/min | 394″/min |
| Rapid Traverse Z-Axis | 394″/min | 394″/min | 394″/min |
| Motor | CL58C | CL58D | CL58E |
| Servo Motor X-Axis | 3.6 HP | 3.6 HP | 3.6 HP |
| Servo Motor Z-Axis | 5.4 HP | 5.4 HP | 5.4 HP |
| Ball Screw | CL58C | CL58D | CL58E |
| X-Axis | Ø1.41″, P6 | Ø1.41″, P6 | Ø1.41″, P6 |
| Z-Axis | Ø1.97″, P8 (80″) / P12 (120″) / P16 (160″); Ø2.48″, P12 (200″) | Ø1.97″, P8 (80″) / P12 (120″) / P16 (160″); Ø2.48″, P12 (200″) | Ø1.97″, P8 (80″) / P12 (120″) / P16 (160″); Ø2.48″, P12 (200″) |
| Tailstock | CL58C | CL58D | CL58E |
| Tailstock Quill Center | M.T. #5 | M.T. #5 | M.T. #5 |
| Tailstock Quill Diameter | Ø 5.9″ | Ø 5.9″ | Ø 5.9″ |
| Tailstock Quill Travel | 8.6″ | 8.6″ | 8.6″ |
| Dimensions | CL58C | CL58D | CL58E |
| Floor Space (L x W) | 210″ / 228″ / 248″ / 273″ / 330″ x 98″ | 210″ / 228″ / 248″ / 273″ / 330″ x 98″ | 210″ / 228″ / 248″ / 273″ / 330″ x 98″ |
| Machine Height | 83″ | 83″ | 83″ |
| Weight | CL58C | CL58D | CL58E |
| Net Weight in pounds | 20,240 / 23,760 / 25,960 / 29,040 / 31,900 | 20,240 / 23,760 / 25,960 / 29,040 / 31,900 | 20,240 / 23,760 / 25,960 / 29,040 / 31,900 |
| Total Power Required | CL58C | CL58D | CL58E |
| KVA | 40 | 40 | 40 |
| STANDARD FEATURES | OPTIONAL ACCESSORIES |
| Bore: 7.3″, 10.1″, or 14.7″ | Sauter V12 Live Tooling Turret + 2.5º C-Axis Spindle Indexing |
| Swing: 35″ (39″, 43″ Optional) | Rear H6 Servo Turret |
| C.C.: 80″ – 240″ | Additional 11.8″ Steady Rest |
| 30 HP / 40 HP (30 min) | 20″ Steady Rest |
| 22″ Bed Width | Extra Heavy-Duty Steady Rests |
| V8 Hydraulic Front Turret | 9.45″ Follow Rest |
| 11.8″ Steady Rest with Roller Jaws | 4″, 5″, 5.5″, or 6″ Boring Bar Support on Cross Slide |
| Front & Rear Chuck Ready | Reducer Sleeves for Boring Bar Supports |
| Rear Spindle Safety Door | Extra High Pressure Coolant Pump |
| Rotary Tailstock with Chuck Mounting Capability | Fanuc Arbitrary Speed Threading |
| Hydraulic & Manual Quill Movement | Full Enclosure |
| Coolant System w/6-Bar Pressure | No Turrets: T-Slot + Aloris Toolpost Only |
| Water Spray Gun for Chip Cleanup | Manual, Hydraulic, & Air Chucks |
| Rear Chip Conveyor | |
| Fanuc 0iTF Plus Controller with Manual Guide i, 10.4″ LCD Monitor |
 |
 |
