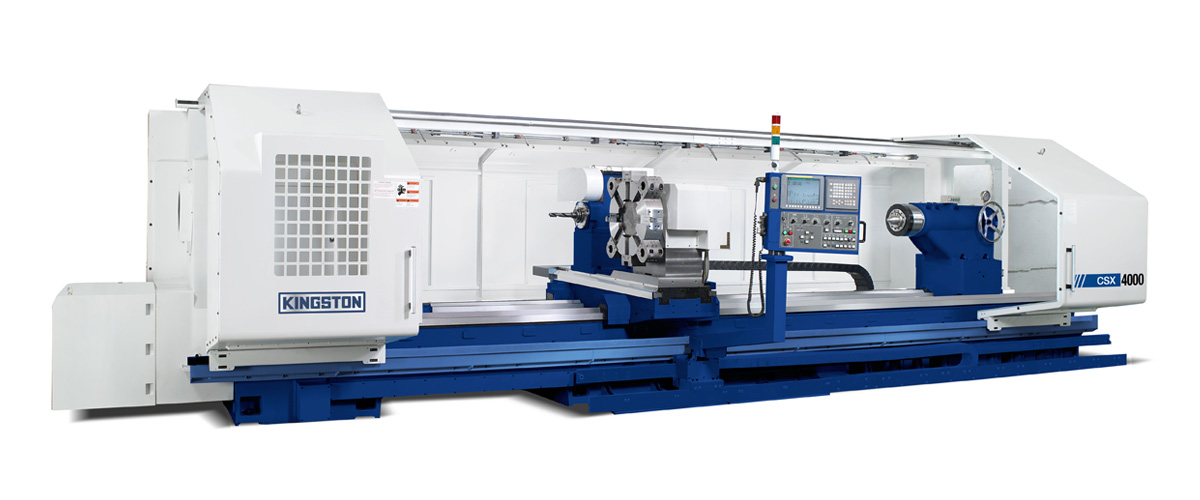

Kingston’s CSX is the largest and brawniest entry in its heavy-duty lineup, boasting an impressive 59″ swing (35.4″over cross slide) for your largest work pieces — upgradable to 75″ over bed and 51.1″ over cross slide (or even more if needed). The CSX features a colossal 1-meter (39.4″) bed width for maximal stability during the heaviest cutting. For milling needs combine 2.5 degree Cs-axis spindle indexing with a Sauter BMT-85 live tooling turret. With spindle bore sizes up to 20.8″ and lengths to 240″ between centers – plus a powerful 60 HP motor – this machine can tackle anything.
Specifications
| Capacity | CSX 7 | CSX 10 | CSX 14 | CSX 20 |
| Swing Over Bed | 59″ (67″ or more available) | 59″ (67″ or more available) | 559″ (67″ or more available) | 59″ (67″ or more available) |
| Swing Over Cross Slide | 35.4″ standard | 35.4″ standard | 35.4″ standard | 35.4″ standard |
| Distance Between Centers | 80” / 120” / 160” / 200” / 240” | 80” / 120” / 160” / 200” / 240” | 80” / 120” / 160” / 200” / 240” | 80” / 120” / 160” / 200” / 240” |
| Maximum Cutting Length | 79” / 118” / 158” / 197” / 237” | 79” / 118” / 158” / 197” / 237” | 79” / 118” / 158” / 197” / 237” | 79” / 118” / 158” / 197” / 237” |
| Width of Bed | 39.4″ | 39.4″ | 39.4″ | 39.4″ |
| Headstock | CSX 7 | CSX 10 | CSX 14 | CSX 20 |
| Spindle Bore | 7.1″ | 10.0″ | 14.7″ | 20.8″ |
| Spindle Motor | 50 HP / 60 HP (30min) | 50 HP / 60 HP (30min) | 50 HP / 60 HP (30min) | 50 HP / 60 HP (30min) |
| Type of Spindle Nose | A2-15 | A2-15 | A2-20 | A2-28 |
| Gear Box | CSX 7 | CSX 10 | CSX 14 | CSX 20 |
| Number of Speed Ranges | 2 | 2 | 2 | 2 |
| Spindle Speed (RPM) | 6 — 650 | 6 — 650 | 4 — 450 | 2 — 300 |
| Turret | CSX 7 | CSX 10 | CSX 14 | CSX 20 |
| Turret | V8 Hydraulic (Std), H4 or H6 (Opt) | V8 Hydraulic (Std), H4 or H6 (Opt) | V8 Hydraulic (Std), H4 or H6 (Opt) | V8 Hydraulic (Std), H4 or H6 (Opt) |
| Traverse | CSX 7 | CSX 10 | CSX 14 | CSX 20 |
| Max. Stroke X-Axis | 28.9″ | 28.9″ | 28.9″ | 28.9″ |
| Max. Stroke Z-Axis | 82.5” / 121.8” / 161.2” / 200.6” / 240.0” | 82.5” / 121.8” / 161.2” / 200.6” / 240.0” | 82.5” / 121.8” / 161.2” / 200.6” / 240.0” | 82.5” / 121.8” / 161.2” / 200.6” / 240.0” |
| Rapid Traverse X-Axis | 236”/min | 236”/min | 236”/min | 236”/min |
| Rapid Travers Z-Axis | 236”/min | 236”/min | 236”/min | 236”/min |
| Motor | CSX 7 | CSX 10 | CSX 14 | CSX 20 |
| Servo Motor X-Axis | 5.3 HP | 5.3 HP | 5.3 HP | 5.3 HP |
| Servo Motor Z-Axis | 8.0 HP | 8.0 HP | 8.0 HP | 8.0 HP |
| Ball Screw | CSX 7 | CSX 10 | CSX 14 | CSX 20 |
| X-Axis | Ø1.41”, P6 | Ø1.41”, P6 | Ø1.41”, P6 | Ø1.41”, P6 |
| Z-Axis | Ø2.48”, P12 | Ø2.48”, P12 | Ø2.48”, P12 | Ø2.48”, P12 |
| Tailstock | CSX 7 | CSX 10 | CSX 14 | CSX 20 |
| Tailstock Quill (Nose, Taper, Bearing) | A-1-8, M.T. #6, 33024 | A-1-8, M.T. #6, 33024 | A-1-8, M.T. #6, 33024 | A-1-8, M.T. #6, 33024 |
| Tailstock Quill Diameter | Ø9.4” | Ø9.4” | Ø9.4” | Ø9.4” |
| Tailstock Quill Travel | 7.1″ | 7.1″ | 7.1″ | 7.1″ |
| Dimensions | CSX 7 | CSX 10 | CSX 14 | CSX 20 |
| Floor Space (L x W) | 305” / 344” / 384” / 423” / 470” x 151” | 305” / 344” / 384” / 423” / 470” x 151” | 305” / 344” / 384” / 423” / 470” x 151” | 305” / 344” / 384” / 423” / 470” x 151” |
| Machine Height | 91″ | 91″ | 91″ | 91″ |
| Weight | CSX 7 | CSX 10 | CSX 14 | CSX 20 |
| Net Weight (lbs.) | 31,372 / 35,442 / 39,556 / 43,670 / 47,806 | 31,372 / 35,442 / 39,556 / 43,670 / 47,806 | 31,372 / 35,442 / 39,556 / 43,670 / 47,806 | 31,372 / 35,442 / 39,556 / 43,670 / 47,806 |
| Total Power Required | CSX 7 | CSX 10 | CSX 14 | CSX 20 |
| 100 KVA | 100 KVA | 100 KVA | 100 KVA |
| STANDARD FEATURES | OPTIONAL ACCESSORIES |
| Bore: 7.1″, 10.0″, 14.7″, or 20.8″ | Sauter V12 Live Tooling Turret (BMT85) + 2.5° C-Axis Spindle Indexing |
| Swing: 59″ (67″ and Higher Available) | Additional Rear Turret: H4 (350) |
| Swing Over Cross Slide: 35.4″ standard | Steady Rest with Roller Jaw with 2 Sleeves (17.7″ ~ 25.7″, 25.6″ ~ 31.5″) |
| C.C.: 80″ – 240″ | Roller Bracket 24.4″ ~ 41.3″ |
| 50 HP / 60 HP (30 min) | 7″ Boring Bar Support (Other sizes available) |
| 39.4″ Bed Width | Reducer Sleeves for Boring Bar Supports |
| Boxed Way Cross Slide and Carriage | Extra High Pressure Coolant Pump |
| V8 Hydraulic Turret (H6 or H4 Optional) | Front or Rear Chip Conveyor (In Addition to Center Conveyor) |
| Front & Rear Chuck Ready | Additional Swing Diameter |
| Rear Spindle Safety Door | Fanuc Arbitrary Speed Threading |
| Coolant System w/6-Bar Pressure | Manual, Hydraulic, & Air Chucks |
| Water Spray Gun for Chip Cleanup | |
| Center Chip Conveyor | |
| Fanuc 0iTF Controller with Manual Guide i & Threading Repair, 10.4″ Monitor |
 |
 |
