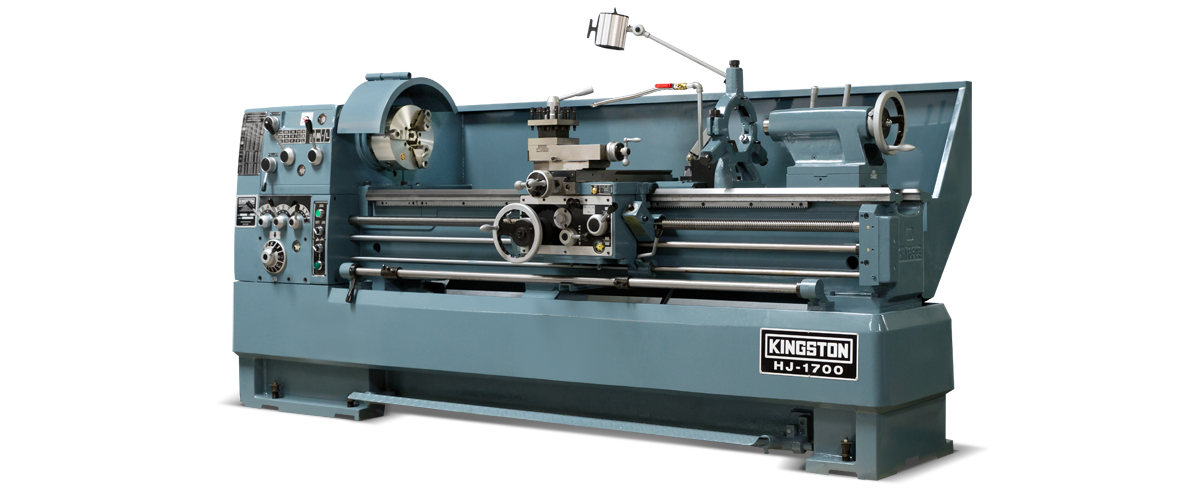

Our rugged HJ is the perfect manual lathe for job shop production, repairs, reworking threads, and making fixtures and tooling. In addition to machine shops, schools also love the HJ because of its ease of operation and ability to withstand abuse. The hardened and ground main spindle features a 3-point bearing suppport with taper roller bearings for precision cutting. The HJ features a D1-6 Camlock spindle, 12 speeds from 35 – 2000 RPM and a 7.5 HP motor. The uniquely designed timing-belt-driven gear box offers a comprehensive range of inch and metric threads without the use of change gears, making for a smoother and quieter operating experience overall. Both bedway and cross slide are hardened and ground. Machine lengths in 43″ or 67″. Now also available with a 3″ bore upgrade.
Swing Over Bed 17″
Swing Over Cross Slide 10.6″
Swing in Gap 24″
Distance Between Centers 43.5″
Width of Bed 11.75″
Length in Front of Face Plate 5.9″
Height of Center from Leg Bottom 42.3″
Contact us today for a full quote.
