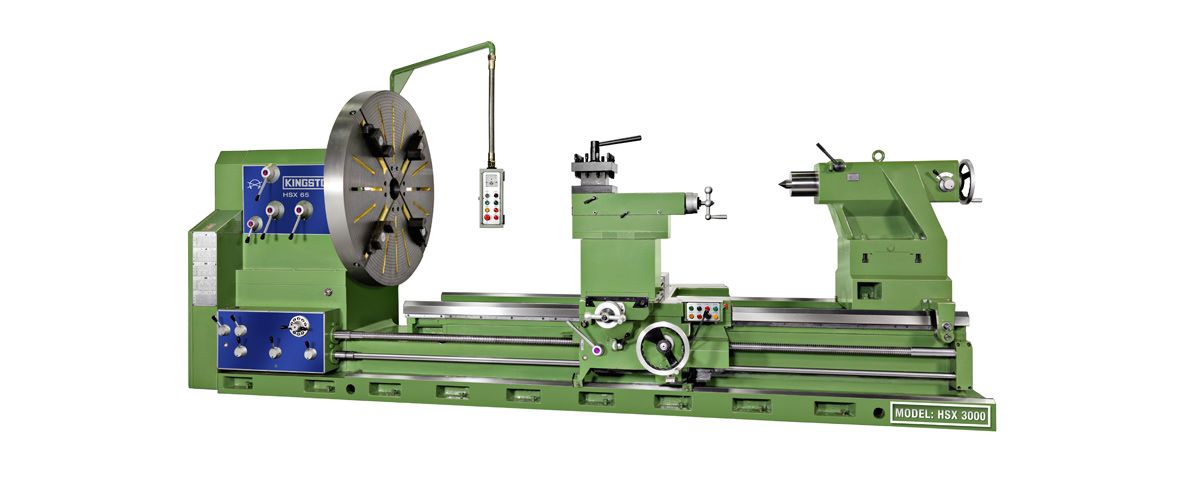

Kingston HS 45 / 51 Large Swing Lathes
Kingston’s HS model answers the call when you need to go big or go home. Available with a generous swing of 45” (upgradable to 51”), lengths from 60” to 472” between centers, and spindle bores up to 16”, the HS is an infinitely customizable large swing engine lathe. Combining this flexibility with a stocky 26” bed width, 30 HP main motor, and a giant range of available feeds and threads, Kingston’s large swing HS model definitely takes on all comers.
Specifications
| Capacity |
HS-45 |
HD-51 |
| Swing Over Bed |
45″ |
51″ |
| Swing Over Cross Slide |
33″ |
39″ |
| Swing in Gap |
67″ |
73″ |
| Width of Gap |
22” (Opt. No Gap) |
22” (Opt. No Gap) |
| Width of Bed |
26″ |
26″ |
| Distance Between Centers |
60” – 472” |
60” – 472” |
| Headstock |
HS-45 |
HD-51 |
| Spindle Bore |
6” – 16” |
6” – 16” |
| Type of Spindle Nose |
A2-11 – A2-20 |
A2-11 – A2-20 |
| Number of Spindle Speeds |
12 |
12 |
| Spindle Speed |
4 – 400 RPM (6”, 12”, 14”, 16”)
5 – 500 RPM (9”, 10”) |
4 – 400 RPM (6”, 12”, 14”, 16”)
5 – 500 RPM (9”, 10”) |
| Gear Box |
HS-45 |
HD-51 |
| Number of Feed Changes |
60 Kinds |
60 Kinds |
| Longitudinal Cross |
0.003” – 0.198in/rev (0.0017-0.099in/rev) |
0.003” – 0.198in/rev (0.0017-0.099in/rev) |
| Leadscrew Diam. & Threads per Inch |
2 1/4” & 2 TPI |
2 1/4” & 2 TPI |
| Threading range – Whitworth |
¼ – 30 TPI (70 kinds) |
¼ – 30 TPI (70 kinds) |
| Threading range – Metric |
1 to 120mm pitch (62 kinds) |
1 to 120mm pitch (62 kinds) |
| Threading range – Module |
0.25 – 30 (53 kinds) |
0.25 – 30 (53 kinds) |
| Threading range – D.P. |
1 – 120 D.P. (70 kinds) |
1 – 120 D.P. (70 kinds) |
| Tool Slide |
HS-45 |
HD-51 |
| Maximum Travel of Compound |
16.5” |
16.5” |
| Maximum Travel of Cross Slide |
25” |
25” |
| Tailstock |
HS-45 |
HD-51 |
| Tailstock Quill Travel |
13.4” |
13.4” |
| Tailstock Quill Diameter |
4.9” |
4.9” |
| Tailstock Center |
M.T. #6 (Opt. M.T. #7) |
M.T. #6 (Opt. M.T. #7) |
| Motor |
HS-45 |
HD-51 |
| Main Drive Motor |
30 HP |
30 HP |
| Rapid Travel Motor |
1 HP |
1 HP |
| Dimensions |
HS-45 |
HD-51 |
| Floor Space 78.7” W x 86.6” H |
138” – 551” |
138” – 551” |
| Weight (lbs.) |
17,415 – 45,195 |
17,415 – 45,195 |
| Standard Features |
Optional Accessories |
| 30 HP, 4P Main Motor |
Spindle Bore Upgrades up to 16″ |
| 6” Spindle Bore |
11.8” Steady Rest with Roller Jaws (Min. Capacity 2.78”) |
| Spindle Nose: ASA-A2-11 |
Additional 23.6″ Steady Rest with Roller Jaws (Min. Capacity 11”) |
| 4-Jaw 45” Face Plate |
31.5” Steady Rest with Roller Jaws |
| 1 x 23.6” Steady Rest (min. 11”) |
Follow Rest (Pad Jaw) |
| Hardened and Ground Bedway’s |
Roller Bracket (Two point) |
| Coolant System |
Rear Chuck Adapter |
| Electromagnetic Brake System |
Taper Attachment |
| 4-Way Rapid Traverse |
Motorized Top Slide |
| Tool Slide with T-Slot |
Rotary Tailstock |
| Toolbox with Necessary Wrenches & Spanners |
Halogen Work Light |
| Operating Manual and Parts List |
Traveling Chip Guard (Follows the carriage) |
|
Traveling Splash Guard |
|
Full-Length Splash Guard |
|
Longitudinal Feed Stop |
|
Digital Readout (DRO) |
|
Aloris Tool Post & Sets |
|
3-Jaw and 4-Jaw Manual Chucks |
