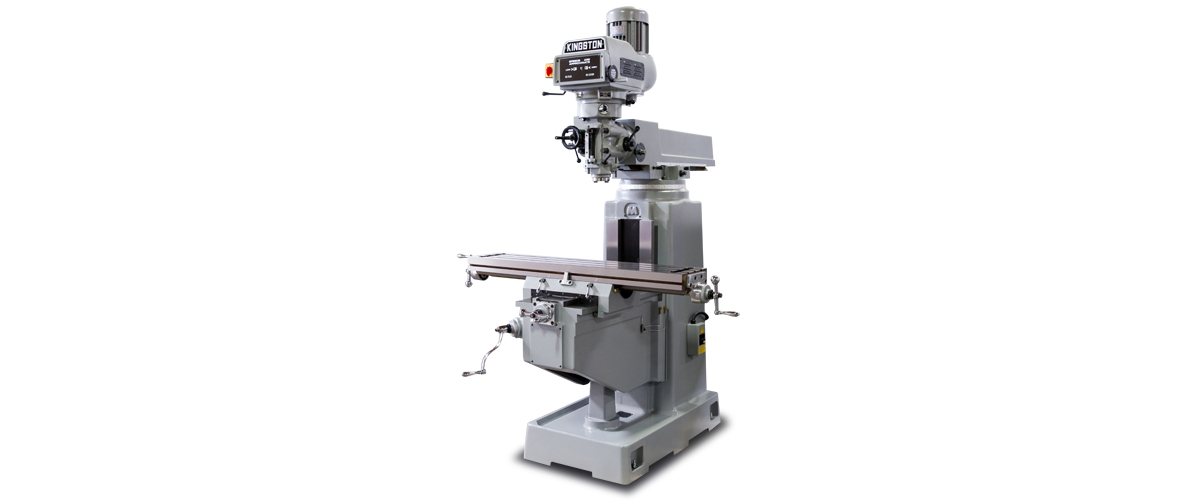

The KMT-5V is the most robust machine in Kingston’s celebrated line of KMT mills. The KMT-5V features a 5 HP motor and an NT#40 nose; the rugged design and sturdy head housing ensure this well-built machine will last for years. Turcite-B, which coats the sliding surfaces of the X- and Y-axis for optimal performance, and Meehanite casting make these mills ready to tackle all types of projects. The spindle contains a Class 7 precision bearing and a maximum runout within .0002 inches, with spindle speeds up to 4200 RPM. The knee and table ways are hardened and ground, while a heavy-duty saddle support runs the full width of the table for extra stability. Every shop needs at least one mill – the KMT-5V has you covered.
Specifications
| Capacity | |
| Table | 10″ x 50″ |
| Travel (X x Y) | 36.0″ x 17.5″ |
| Travel (Z) Quill | 5.0″ |
| Travel (Z) Knee | 17.5″ |
| Spindle Motor | 5 HP |
| Spindle Taper | NT#40 |
| Spindle Speed | 60 – 4200 RPM |
| Spindle Power Feed Rate | 0.0015″/Rev, 0.003″/Rev, 0.006″/Rev |
| Dimensions | |
| Overall Height | 93.6″ |
| Overall Length | 59.4″ |
| Overall Width | 67.7″ |
| Weight | 3,630 lbs. |
| Standard Features | Optional Accessories |
| 5 HP Motor, NT #40 Nose | Best Line Table Power Feed |
| Square Ways in Both Y & Z Axis | Best Line Cross Power Feed |
| Meehanite Casting | Best Line Knee Power Feed |
| Turcite-B on X & Y Axis | A & T Mechanical Power Lock Drawbar |
| Class 7 Precision Bearing (P4) for Spindle | Yaskawa Frequency Inverter Drive (Factory Installation Only) |
| Dual Locks on Knee, Table, Saddle, & Ram | Work Light |
| Max Spindle Runout .0002 | Coolant System |
| Chip Pan | |
| Digital Readout (DRO) |
 |
 |
