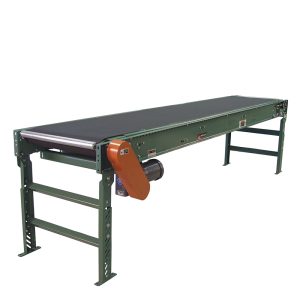

Slider bed belt conveyors remain the most popular of all powered conveyors, providing an economical means of transporting goods for packing, testing, inspecting and various assembly line operations.
Specifications
| Belting | PVC-120 black. |
| Drive Pulley | 4″ dia. with 1-3/16″ dia. shaft or 8″ dia. with 1-7/16″ dia. shaft, both crowned and fully lagged. |
| Tail Pulley | 4″ dia., crowned, with 1-3/16″ dia. shaft. |
| End Drive | Allows one-direction (unit) operation; add optional center drive for reversible application. |
| Take-Up | Screw type unit at tail pulley provides 12″ belt take-up. |
| Bearings | All pulley bearings are precision, heavy duty, lubricated, ball bearing units with cast iron housings. |
| Return Rollers | 1.9″ dia. x 16 ga. steel, model 196S, adjustable. |
| Belt Speed | 60 FPM, constant. |
| Bed | 7″ x 12 ga. channel frame with 14 ga. slider bed 9″-27″ BF; 12 ga. bed 33″ BF and above with bed pan braces. |
| Floor Supports | Optional |
| Motor Drive | 1/3 HP, 230/460/3, 60 cycle, ODP right angle gear motor. |
| Roller Chain | Drive pulley is driven by No. 50 roller chain for 1-1/2 HP or less and No. 60 chain on larger drives. Chain take-up provided on motor base. |
| Safety Pop-Out Rollers | Standard on both ends, 1.9″ dia x 16 ga. steel roller, model 196S. |
| Electrical Controls | Optional |
 |
 |
