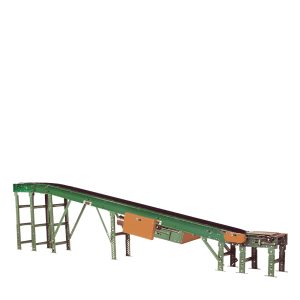

Model 700SBF floor-to-floor conveyor provides higher load capacity, reversible flow and nose-over allows for simple adjustments for inclines 0-35°. Shown with optional supports, knee braces, chain driven feeder and right hand drive. All units furnished standard with left hand drive.
Specifications
| Belting | Black PVC rough-top. |
| Drive Pulley | 8″ dia. with 1-7/16″ dia. shaft, both crowned and fully lagged. |
| Tail Pulley | 4″ dia., crowned, with 1-3/16″ dia. shaft. |
| Center Drive | Reversible drive with 24″ belt take-up. |
| Nose-Over | Provides smooth transition from incline to horizontal position. Single nose-over adjust 0-20 degrees; double nose-over adjust 0-35 degrees. |
| Bearings | All pulley bearings are precision, heavy duty, lubricated, ball bearing units with cast iron housings. |
| Return Rollers | 1.9″ dia. x 16 ga. steel, model 196S, adjustable. |
| Belt Speed | 60 FPM, constant. |
| Bed | 7″ x 12 ga. channel frame with 14 ga. slider bed. |
| Floor Supports | Optional |
| Motor Drive | 1/3 HP, 230/460/3, 60 cycle, ODP right angle gear motor. |
| Roller Chain | Drive pulley is driven by No. 50 roller chain for 1-1/2 HP or less and No. 60 chain on larger drives. Chain take-up provided on motor base. |
| Electrical Controls | Optional |
 |
 |
