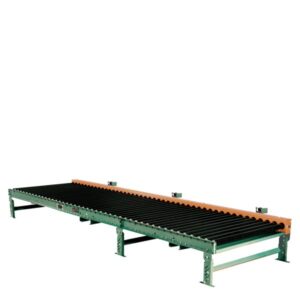

SZD251CDA SMART ZONE® is a heavy duty roll-to-roll chain driven zero pressure accumulator, designed to safely accumulate heavy products such as castings, drums, containers and heavy pallet loads in 5’ zones. The Roach design incorporates photo electric sensors–instead of sensor rollers–which eliminates many of the problems associated with conveying wooden pallets. Products do not touch during accumulation and are singulated individually off of conveyor. SMART ZONE® is easy to install and simple to maintain.
Specifications
| Tread Rollers | 2.5” dia. x 11 ga., model 251S. |
| Chain Drive | Roller-to-roller No. 40 roller chain. Zone-to-zone No. 60 roller chain. |
| Chain Guard | All chains are completely enclosed along the entire length of conveyor. |
| Center Drive | Drive either side mounted or underside mounted (specify). Drive shafts are supported by precision, heavy duty, lubricated, ball bearing units. |
| Roller Centers | 4″ or 6″ RC ONLY. |
| Speed | 35 FPM, constant. |
| Accumulation Zone | 5′-0″ zone lengths, zone singulation operation, photo electric sensor controlled zones with separate drives on each zone. |
| Bed | 7-1/2″ x 1-1/2″ x 7 ga. and 5 ” x 1-1/2″ x 7 ga. formed steel channel frame. Bed sections are bolted together with butt couplings and floor supports. |
| Floor Supports | Optional |
| Bearings | Removable type, heavy duty ball bearings, zinc-plated, grease packed, labyrinth seal. |
| FRL | Unit is provided with filter, regulator and lubricator with 3/8″ ports for 60 PSI operational pressure. |
| Motor Drive | 1/2 HP, 230/460/3, 60 cycle, ODP right angle gear motor. |
| Capacity | 1000 lbs./ft. up to a maximum of 3000 lb. pallet load. |
| Electrical Controls | Optional |
 |
 |
