$545.00

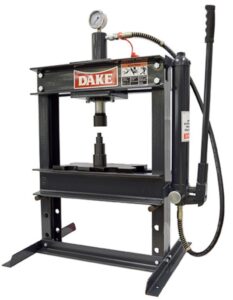

Dake’s line of utility presses might look small but they are extremely durable. These manual powered presses are the perfect addition for any home or hobby shop. The B-10 model is a 10 ton capacity bench press. For custom applications, a traversing head and removable nose piece come standard. Each press comes complete with table plates, gauge, and manual. These quality utility presses are guaranteed to last for years.
Specifications
| Capacity | 10 tons |
| Operation | Manual |
| Width between uprights | 16-3/4” |
| Width between table channels | 3” |
| Minimum ram to table | 4” |
| Maximum ram to table | 16” |
| Ram travel | 6” |
| Horizontal work head travel | left/right of center |
| Footprint | 23″ x 18″ |
| Height | 36” |
| Weight | 165 lbs. |
| Base | 23″ x 18″ |
| Ram advance speed | 1/8″ /min per stroke |
Standard Features
| Fast, efficient single speed hand pump with adjustable mounting for maximum ergonomic operation. |
| Convenient top mounted gauge reads in tons and psi to monitor pressure. |
| Table can be adjusted for maximum or minimum vertical opening to accommodate a variety of work pieces and to minimize required ram travel. |
| Large diameter, single acting polished piston with internal spring return to eliminate external pinch points. |
| The hydraulic pressing cylinder can be relocated right or left of center for unusual work pieces. |
Standard Equipment
| Frame |
| Flat Ram Nose |
| Combination Table Plates/V-Blocks |
| Step Reduced Ram Nose |
 |
 |
