$1,205.00

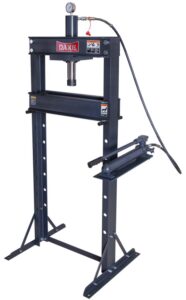

Dake’s line of utility presses might look small but they are extremely durable. These manual powered presses are the perfect addition for any home or hobby shop. The F-10 model is a 10 ton capacity floor press. For custom applications, a traversing head and removable nose piece come standard. Each press comes complete with table plates, gauge, and manual. These quality utility presses are guaranteed to last for years.
Specifications
| Capacity | 20 tons |
| Operation | Manual |
| Width between uprights | 22” |
| Width between table channels | 4″ |
| Minimum ram to table | 4” |
| Maximum ram to table | 39” |
| Ram travel | 8” |
| Horizontal work head travel | left/right of center |
| Footprint | 34″ x 26″ |
| Height | 70” |
| Weight | 283 lbs. |
| Base | 34″ x 26″ |
| Ram advance speed | 3/16″ /min per stroke |
Standard Features
| Heavy steel channel frame and table. |
| Long 8” stroke. |
| Self-contained fast, efficient two speed hand operated pump conveniently located. |
| Traversing head L/R for off center pressing applications. |
| Removable nose piece to allow for custom nose piece installation. |
| Table can be adjusted for maximum or minimum vertical opening to accommodate a variety of work pieces and to minimize required ram travel. |
| Large diameter, single acting polished piston with internal spring return to eliminate external pinch points. |
| Comes complete with table plates, gauge, and owner’s manual. |
Standard Equipment
| Steel channel and frame |
| Traversing head |
| Removable nose piece |
| Table plates |
| Gauge |
| Step nose piece |
 |
 |
