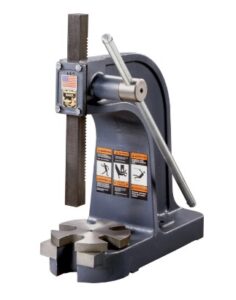

The most heavy duty arbor press in our single leverage line, this 3 ton press features a slotted table plate and base opening. Add an optional pedestal to make this machine a favorite in your shop.
Specifications
| Capacity | 3 Tons |
| Leverage ratio | 36:1 |
| Ram size | 1-1/4″ x 1-1/4″ x 16-1/2″ |
| Maximum diameter work | 14″ |
| Throat | 7″ |
| Largest arbor | 2″ |
| Maximum ram to table | 11-1/2″ |
| Minimum ram to table | 10-3/4″ |
| Capacity over table | 11-1/2″ |
| Capacity over table plate | 10-3/4″ |
| Base length | 18″ |
| Base width | 7-1/4″ |
| Height | 19″ |
| Weight | 130 lbs. |
Features
| Shimmed ram cap permits take-up for potential wear. |
| Smooth action gears permit finite ram control. |
| Friction Brake |
| Adjustable handle allows convenient handle positioning. |
| Base opening and slotted table plate for arbor work. |
Standard Equipment
| Cast Iron Base |
| Ram |
| Slotted Table Plate |
| Adjustable Handle |
 |
 |
