Specifications
| Metric | Inch | |
| Punching Force | 500 kN (675 kN optional) | 55 Tons (75 Ton optional) |
| Material Thickness | ||
| Minimum | 1.5 mm | .060″ |
| Maximum | 19 mm | .750″ |
| Maximum Punch Diameter | 127 mm | 5.000″ |
| Punching Capacity A36 (60ksi / 410 MPa Shear Strength) | ||
| .250″ (6 mm) | 127.0 mm (shear) | 5.000″ (shear) |
| .375″ (10 mm) | 82.1 mm (shear) | 3.234″ (shear) |
| .500″ (12 mm) | 49.2 mm (shear) | 1.938″ (shear) |
| .625″ (16 mm) | 31.3 mm (shear) | 1.234″ (shear) |
| .750″ (19 mm) | 19.5 mm (flat) | 0.766″ (flat) |
| Punching Hit Rate 10 gage (3 mm) material punched on 1″ (25.4 mm) centers. | 115 HPM | |
| Maximum Positioning Area | ||
| X-Axis | 4842 mm | 190.6″ |
| Y-Axis | 2500 mm | 100″ |
| Nominal Blank Size | ||
| Without Auxiliary Tables | 2.5m x 4m | 100″ x 160″ |

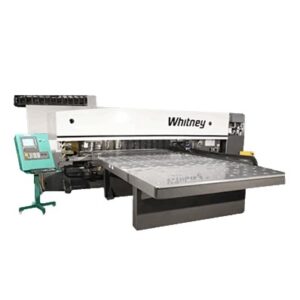

| The 3400HXT can punch and plasma cut a full 100″ x 160″ (2.5m x 4m) sheet of material without repositioning. | ||
| Extended Blank Size | ||
| With Auxiliary Tables and Repositioning | 2.5m x 4m | 100″ x 320″ |
| Longer plates may be accommodated in certain applications using multiple automated repositioning cycles. These applications must be reviewed by the factory. | ||
| Positioning Speed per Axis | 30 M/min | 1,200 in/min |
| Positioning Accuracy | +0.13 mm | +0.005″ |
| Minimum Programmed Incremental | 0.01 mm | 0.001″ |
| Maximum Material Weight | 1360 kg | 3,000 lbs. |
| Maximum Blank Size | ||
| Without Auxiliary Tables | 2000 x 3500 mm | 100″ x 144″ |
| Longer plates may be accommodated in certain applications using multiple automated repositioning cycles. These applications must be reviewed by the factory. | ||
| Approximate Shipping Weight | ||
| Base Machine & Accessories | 24,494 kg | 54,000 lbs. |
| Optional accessories will increase overall shipping weight. Largest component weight is less than 38,000#/17,250 kg | ||
| Foundation Requirement | ||
| An 8″ / 200 mm reinforced concrete foundation is required beneath the press frame. | ||
| Electrical Requirements | 120 KVA | 460/3/60 |
| Contact us for voltages other than 460/3/60 | ||
| Approximate Floor Space | ||
| Font – Back | 9,760 mm | 384″ |
| Left – Right | 10,275 mm | 404″ |
| Height – Machine | 2,682 mm | 106″ |
| Height with dust collector | 3,750 mm | 148″ |
| Base machine and required accessories only. Actual floor space and height requirements can vary with options. Request personized quotation for detailed floor space requirements. |
NOTE: Specifications are subject to change without notice.
Contact us for a personalized quote!
 |
 |
