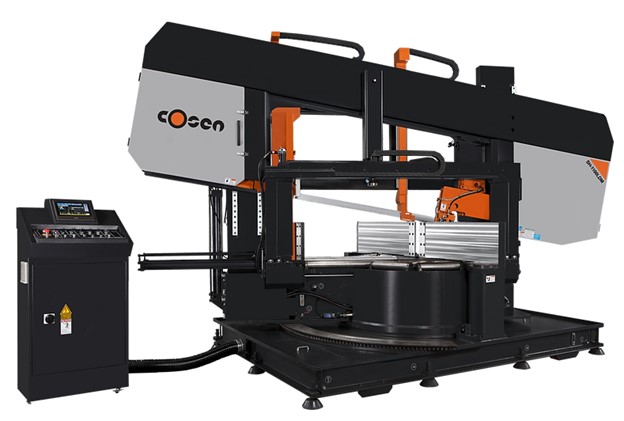

Cosen provides a full range of semi-automatic band saws in a wide variety of cutting capacities. These saws exceed many of the standard requirements that operators look for in a band saw machine. With its rigid construction and superior features, Cosen’s SH-1100LDM fits into that category. This heavy-duty band saw offers precision, efficiency in operation, lower cost per cut, and durability in a demanding production environment.
Specifications
| Capacity Angle | 0 | +45 | +60 |
| Round Capacity | 26″ | 26″ | 15.7″ |
| Rectangular Capacity | 26″ x 44″ | 26″ x 27.6″ | 26″ x 15.7″ |
| Blade Speed | 50 – 393 FPM |
| Blade Size (L x W x T) | 33′ 2″ x 2.625″ x .063 |
| Blade Motor | 15 HP |
| Coolant Motor | 1/2 HP |
| Coolant Tank Capacity | 26 gal |
| Hydraulic Tank Capacity | 16 gal |
| Work bed Height | 33.5″ |
| Weight | 24,200 lbs. |
| Floorspace (L x W x H) | 191″ x 193″ 134″ |
Features
| High precision linear guide way design |
| Heavy-duty cast iron swivel center features straight cutting and miter cuts (+/-60 degrees) |
| Gearbox designed to accept high lateral pressure (no thermal distortion) |
| Inverter blade drive system which allows infinitely variable blade speeds |
| Adjustable flood coolant system |
| Motor driven, synchronized wire blade brush |
| Carbide blade guides and bearing provides additional blade support |
| Hydraulically actuated cast-iron guide arms |
| Cast-iron hydraulic vise |
| Split vise jaw for reduced burr |
| Automatic hydraulic blade tensioning device |
| Dual valve feed pressure and feed rate system for optimal cutting performance |
 |
 |
