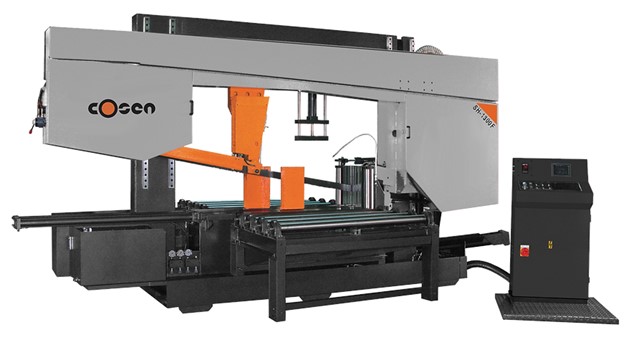

Cosen provides a full range of semi-automatic band saws in a wide variety of cutting capacities. These saws exceed many of the standard requirements that operators look for in a band saw machine. With its rigid construction and superior features, Cosen’s SH-1300LF fits into that category. This heavy-duty band saw offers precision, efficiency in operation, lower cost per cut, and durability in a demanding production environment.
Specifications
| Round Capacity | 26.7″ |
| Rectangular Capacity (H x W) | 21.3″ x 51.2″ |
| Blade Speed | 82-393 FPM |
| Blade Size (L x W x T) | 33′ 8″ x 2.625″ x .063″ |
| Blade Motor | 20 HP |
| Coolant Motor | 1/2 HP |
| Coolant Tank Capacity | 23.7 gal |
| Hydraulic Tank Capacity | 31.7 gal |
| Work bed Height | 29.9″ |
| Weight | 17,820 lbs. |
| Floorspace (L x W x H) | 200.7″ x 109.1″ x 106.3″ |
Features
| High precision linear guide way design |
| Planetary gearbox designed to accept high lateral pressure (no thermal distortion) |
| Inverter blade drive system which allows infinitely variable blade speeds |
| Adjustable flood coolant system |
| Motor driven, synchronized wire blade brush |
| Carbide blade guides and bearing provides additional blade support |
| Hydraulically actuated cast-iron guide arms |
| Cast-iron hydraulic vise |
| Split vise jaw for reduced burr |
| Automatic hydraulic blade tensioning device |
| Precision feed pressure control valve for optimal performance |
 |
 |
