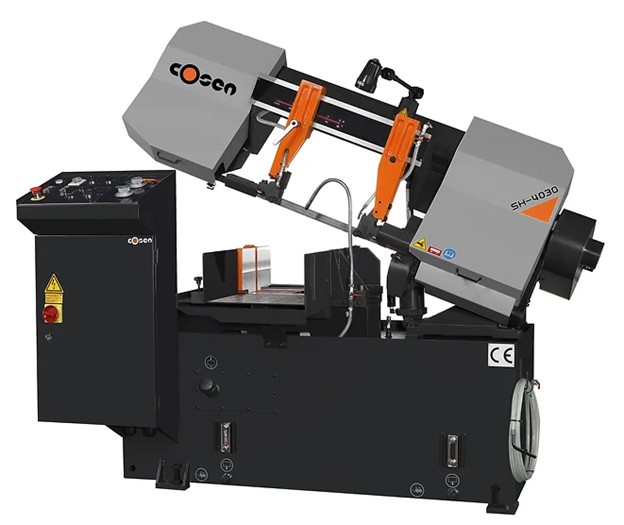

Cosen provides a full range of semi-automatic band saws in a wide variety of cutting capacities. These saws exceed many of the standard requirements that operators look for in a band saw machine. With its rigid construction and superior features, Cosen’s SH-4030 fits into that category. This heavy-duty band saw offers precision, efficiency in operation, lower cost per cut, and durability in a demanding production environment.
Specifications
| Round Capacity | 12″ |
| Rectangular Capacity (H x W) | 12″ x 15.7″ |
| Blade Speed | 66-330 FPM |
| Blade Size (L x W x T) | 12′ 6.4″ x 1.25″ x .042″ |
| Blade Motor | 5 HP |
| Coolant Motor | 1/8 HP |
| Coolant Tank Capacity | 16 gal |
| Hydraulic Tank Capacity | 6.6 gal |
| Work bed Height | 29.1″ |
| Weight | 2,645 lbs. |
| Floorspace (L x W x H) | 78″ x 43″ x 53.7″ |
Features
| Hydraulic cylinder plus precision ground hinge support |
| Gearbox designed to accept high lateral pressure (no thermal distortion) |
| Five step variable speed drive |
| Adjustable flood coolant system |
| Motor driven, synchronized wire blade brush |
| Carbide blade guides and bearings provides additional blade support |
| Rigid cast-iron guide arms |
| Cast-iron hydraulic vise |
| Split vise jaw for reduced burr |
| Precision feed pressure control valve for optimal performance |
| Saw head automatically raises after each cut |
 |
 |
