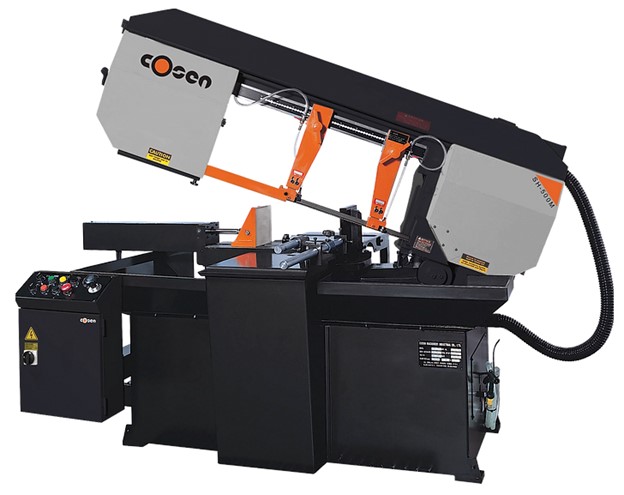

Cosen provides a full range of semi-automatic band saws in a wide variety of cutting capacities. These saws exceed many of the standard requirements that operators look for in a band saw machine. With its rigid construction and superior features, Cosen’s SH-500M fits into that category. This heavy-duty band saw offers precision, efficiency in operation, lower cost per cut, and durability in a demanding production environment.
Specifications
| Capacity Angle | 0 | +45 | +60 |
| Round Capacity | 13″ | 11.8″ | 8.6″ |
| Rectangular Capacity | 11″ x 19.7″ | 11″ x 9.4″ | 11″ x 8.6″ |
| Blade Speed | 60Hz: 75, 114, 164, 246 FPM |
| Blade Size (L x W x T) | 13′ 7″ x 1″ x .035″ |
| Blade Motor | 3 HP |
| Coolant Motor | 1/8 HP |
| Coolant Tank Capacity | 7.9 gal |
| Hydraulic Tank Capacity | 2.08 gal |
| Work bed Height | 32.6″ |
| Weight | 1,980 lbs. |
| Floorspace (L x W x H) | 80.5″ x 41.6″ x 57.8″ |
Features
| Swivel saw head allows miter cutting from 0 to 60º |
| Hydraulic cylinder plus precision ground hinge support |
| Hardened worm gear for durability |
| Hard-stops at 45º and 60º for quick angle set up |
| Blade drive equipped with variable pulley system |
| Adjustable flood coolant system |
| Motor driven, synchronized wire blade brush |
| Carbide blade guides and bearing provides additional blade support |
| Rigid cast-iron guide arms |
| Cast-iron hydraulic vise |
| Adjustable down feed control |
| Adjustable material stop |
| Saw head automatically raises after each cut |
 |
 |
