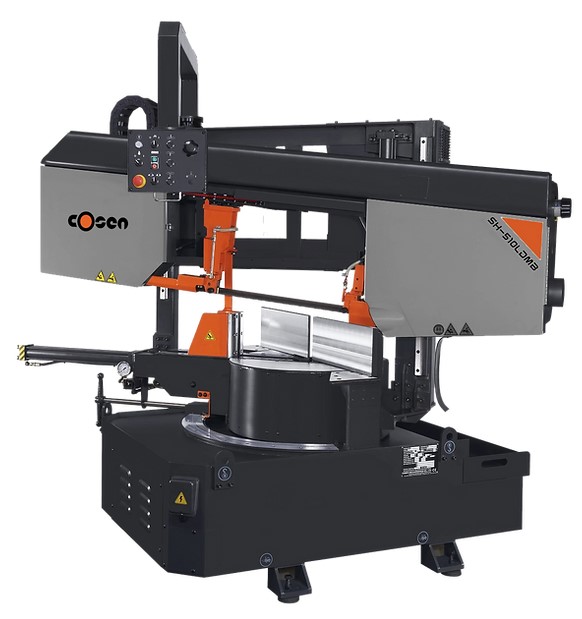

Cosen provides a full range of semi-automatic band saws in a wide variety of cutting capacities. These saws exceed many of the standard requirements that operators look for in a band saw machine. With its rigid construction and superior features, Cosen’s SH-510LDM fits into that category. This heavy-duty band saw offers precision, efficiency in operation, lower cost per cut, and durability in a demanding production environment.
Specifications
| Capacity Angle | 0 | +/- 45 | +/- 60 |
| Round Capacity | 12.5″ | 12.5″ | 7.8″ |
| Rectangular Capacity (H xW ) | 13″ x 20″ | 13″ x 12.5″ | 13″ x 7.8″ |
| Blade Speed | 82 – 328 FPM |
| Blade Size (LxWxT) | 16’4″ x 1.25″ x .042 |
| Blade Motor | 3 HP |
| Coolant Motor | 1/8 HP |
| Coolant Tank Capacity | 16 gal |
| Hydraulic Tank Capacity | 8.6 gal |
| Workbed Height | 30.7″ |
| Weight | 2,992 lbs. |
| Floorspace (L x W x H) | 98.1″ x 48.9″ x 80.4″ |
Features
| High precision linear guide way design |
| Heavy-duty cast iron swivel center features straight cutting and miter cuts (60 degrees) |
| Gearbox designed to accept high lateral pressure (no thermal distortion) |
| Adjustable flood coolant system |
| Motor driven, synchronized wire blade brush |
| Carbide blade guides and bearing provides additional blade support |
| Cast-iron guide arms |
| Cast-iron hydraulic vise which synchronizes movement with guide arm |
 |
 |
