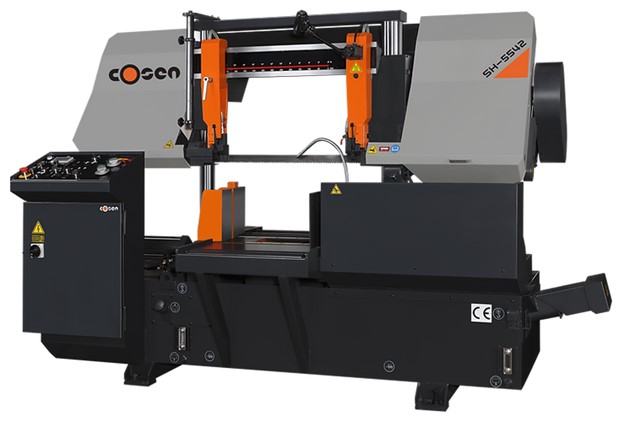

Cosen provides a full range of semi-automatic band saws in a wide variety of cutting capacities. These saws exceed many of the standard requirements that operators look for in a band saw machine. With its rigid construction and superior features, Cosen’s SH-5542 fits into that category. This heavy-duty band saw offers precision, efficiency in operation, lower cost per cut, and durability in a demanding production environment.
Specifications
| Round Capacity | 16.5″ |
| Rectangular Capacity (H x W) | 16.5″ x 21.6″ |
| Blade Speed | 50 – 328 FPM |
| Blade Size (L x W x T) | 17’4.7″ x 1.5″ x .050″ |
| Blade Motor | 7.5 HP |
| Coolant Motor | 1/8 HP |
| Coolant Tank Capacity | 22.4 gal |
| Hydraulic Tank Capacity | 10 gal |
| Work bed Height | 27.5″ |
| Weight | 4,211 lbs. |
| Floorspace (L x W x H) | 108.5″ x 43.7″ x 72.6″ |
Features
| Hydraulic dual column design |
| Gearbox designed to accept high lateral pressure (no thermal distortion) |
| Inverter blade drive system which allows infinitely variable blade speeds |
| Adjustable flood coolant system |
| Motor driven, synchronized wire blade brush |
| Carbide blade guides and bearing provides additional blade support |
| Cast-iron guide arms |
| Cast-iron hydraulic vise |
| Split vise jaw for reduced burr |
| Automatic hydraulic blade tensioning device |
| Dual valve feed pressure and feed rate system for optimal cutting performance |
 |
 |
