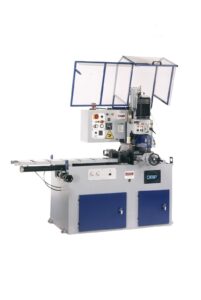

The 370PP Ferrous Automatic Cold Saw is user-friendly while offering aggressive precision and stamina. Featuring two removable surface wear plates, a head that rotates 45º right of center and up to 90º left of center. 440V model requires step-down transformer for operation. *
SPECIFICATIONS:
| MODEL NUMBER | 370PP |
|---|---|
| Voltage | 220 volts/ 440 volts |
| Horsepower | 3.5/4.5 |
| Cutting Ability | Ferrous / Non-ferrous / Plastic |
| Maximum blade diameter | 14-1/2” |
| Maximum vise opening | 8-1/4 ” |
| Maximum feed vise opening | 6-1/2” |
| Maximum Angle | 45° Left / 90° Right |
| Slotting | Yes |
| Phase | 3 |
| Speeds | 25/50 rpm |
| Weight | 1,716 lbs. |
| Solid round 90˚ capacity | 4” |
| Solid round 45˚ capacity | 3-5/8” |
| Tube 90˚ capacity | 5-1/16” |
| Tube 45˚ capacity | 5” |
| Square 90˚ capacity | 4” |
| Square 45˚ capacity | 3-7/8” |
| Rectangle 90˚ capacity | 4” x 7” |
| Rectangle 45˚ capacity | 4” x 6” |
| Work height | 35” |
| Height | 90” |
| Width | 83” |
| Depth | 54” |
STANDARD EQUIPMENT:
| Blade | Tools kit for changing blades |
| Coolant | Instruction and service manual |
| Saw blade selector calculator |
FEATURES:
| Head rotates 45º right of center for miter cutting and up to 90º left of center for miter cutting and slotting. | Outboard section of the table is designed so shorter lengths tumble down a mesh discharge chute. |
| Table features two removable surface wear plates to support longer cut lengths. | Manual oiler to lubricate 1″ thick, hardened ways. |
| Three gib guides for the cutting head with two adjustable cast iron gib blocks in each for increased cutting accuracy and easy adjustment. | 3.5/4.5 HP motor has the muscle to drive a 14-1/2″ or 12″ blade quickly and quietly through solids. |
| Large automatic clamping vise features adjustable gib guides, removable face plates, and an anti-burr arm. | Clear acrylic hood has shock assists for raising and lowering and electrical interlocks. |
| Minimum 6″ remnant drop piece size for maximum material use. | Swap cutting head to gain non-ferrous/ferrous option on same saw. |
MODEL OPTIONS:
| Non-ferrous cutting head | 60″ Roller Table |
| Outbound unloading table | 440V External Transformer * |
| 575V Transformer |
 |
 |
