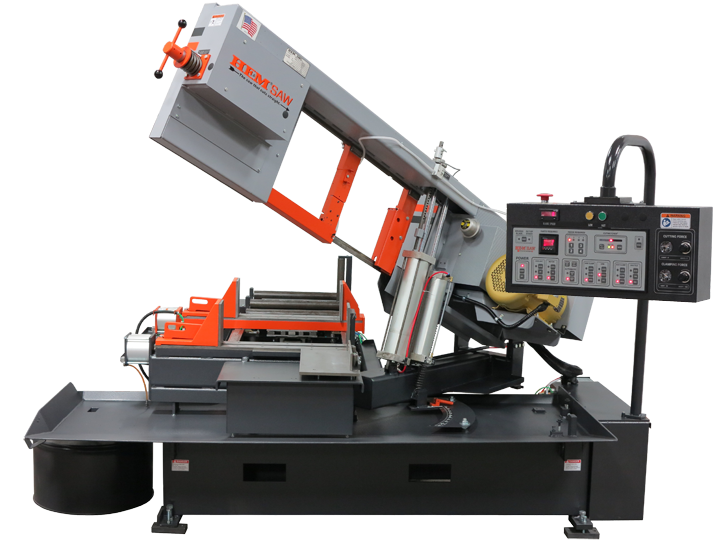

The Cyclone A-4 makes cutting 45ᵒ miter cuts in one direction perfect for cutting small solids and shapes. With a 24” indexing bar-feed and up to 4 indexes, cutting multiple parts in longer than 24” in automatic mode is possible. A variety of options are also available.
Specifications
| Rectangular Capacity | 0-22″ W x 0-16″ H |
| Bar-Feed | 0-24″ (Stroke Air – 4 Index) |
| Motor | 7.5 HP |
| Operation Type | Automatic |
| Power Source | Air |
| Blade Type | Bandsaw |
| Blade Size | 16′ 0″ L x 1.25″ H x .042″ |
| Bundle Cut? | Yes |
Features
| Easy View Console – All Function Control |
| 18″ Discharge Table |
| Vise – Adjustable Main & Feed |
| Adjustable Clamping Force |
| 2 Hold Down Fixtures |
| Vertical Alignment Bar on Bar-Feed |
| Guide Arm – Manual Adjustment |
| Passive “Cut Watcher®” System |
| Variable Blade Speed w/LED Readout |
| Carbide Blade Guides |
| Manual Blade Tension |
| Adjustable Feed Rate |
| Adjustable Cutting Pressure |
| Coolant System – Flood w/Wash-Down Hose |
| Blade Brush |
| Broken Blade Function |
| Out of Stock Function |
| Safety Guards |
| 220V/3PH or 440V/3PH Electrical Motor Requirement (Not Dual Voltage Machine) |
| 85 PSI, 4-6 CFM Minimum Air Requirement (Equipped w/Air Filter/Lubricator) |
 |
 |
