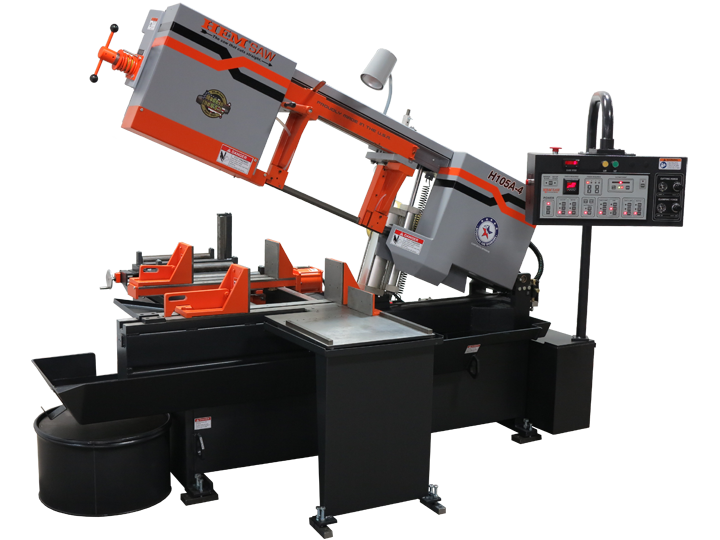

The H105A-4 model includes a 7½ HP motor and a 1¼” blade with a 24” stroke bar-feed that will index up to 4 times cutting up to 999 parts of the same length. This scissor style saw is perfect for cutting small solids and shapes.
Specifications
| Rectangular Capacity | 0-16″ W x 0-14″ H |
| Square Capacity | 0-14″ (Square) |
| Round Capacity | 0-14″ (Diameter) |
| Motor | 7.5 HP |
| Operation Type | Automatic |
| Power Source | Air |
| Blade Type | Bandsaw |
| Blade Size | 15′ 0″ L x 1.25″ H x .042″ |
| Bundle Cut? | Yes |
Features
| Easy View Console – All Function Control |
| 24″ Solid Discharge Table – Bolts to Saw |
| Vise – Adjustable Main & Feed |
| Adjustable Clamping Force |
| Vertical Alignment Roller on Bar-Feed |
| 2 Hold Down Fixtures |
| Manual Adjustable Guide Arm |
| Passive “Cut Watcher®” System |
| Variable Blade Speed w/LED Readout |
| Carbide Blade Guides |
| Manual Blade Tension |
| Adjustable Feed Rate |
| Adjustable Cutting Pressure |
| Coolant System – Flood w/Wash-Down Hose |
| Blade Brush |
| Broken Blade Fuction |
| Out of Stock Function |
| Safety Guards |
| 220V/3PH or 440V/3PH Electrical Motor Requirement (Not a Dual Voltage Machine) |
| 85 PSI, 4-6 CFM Minimum Air Requirement (Equipped w/Air Filter/Lubricator) |
 |
 |
