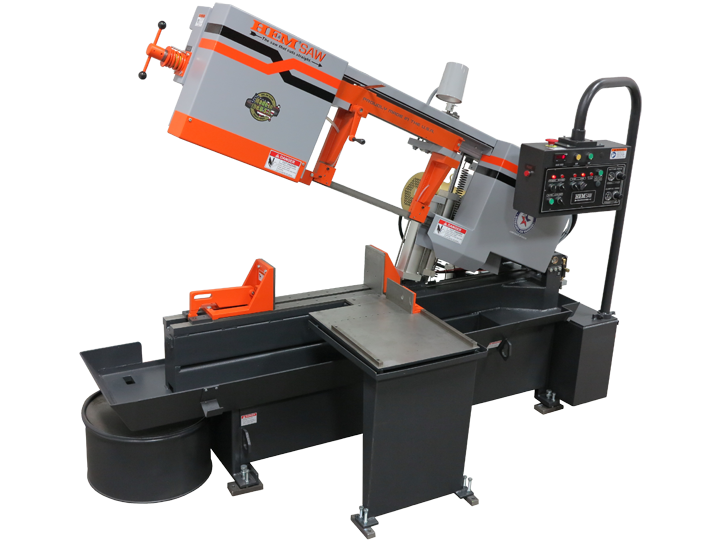

The H105M model includes a 7½ HP motor and a 1¼” blade and will produce straight cuts fast. This saw is perfect for cutting solids and structural shapes. Adjustable clamping pressure and accurate arm control for straight cuts and long blade life.
Specifications
| Rectangular Capacity | 0-16″ W x 0-14″ H |
| Square Capacity | 0-14″ (Square) |
| Round Capacity | 0-14″ (Diameter) |
| Motor | 7.5 HP |
| Operation Type | Semi-Automatic |
| Power Source | Air |
| Blade Type | Bandsaw |
| Blade Size | 15′ 0″ L x 1.25″ H x .042″ |
| Bundle Cut? | Yes |
Features
| Easy View Console – Semi-Automatic Control |
| 24″ Solid Discharge Table – Bolts to Saw |
| Vise – Adjustable Main |
| Adjustable Clamping Force |
| Hold Down Fixture |
| Guide Arm – Manual Adjustment |
| Variable Blade Speed w/LED Readout |
| Carbide Blade Guides |
| Manual Blade Tension |
| Adjustable Feed Rate |
| Adjustable Cutting Pressure |
| Coolant System – Flood w/Wash-Down Hose |
| Blade Brush |
| Broken Blade Function |
| Safety Guards |
| 220V/3PH or 440V/3PH Electrical Motor Requirement (Not a Dual Voltage Machine) |
| 85 PSI, 4-6 CFM Minimum Air Requirement (Equipped w/Air Filter/Lubricator) |
 |
 |
