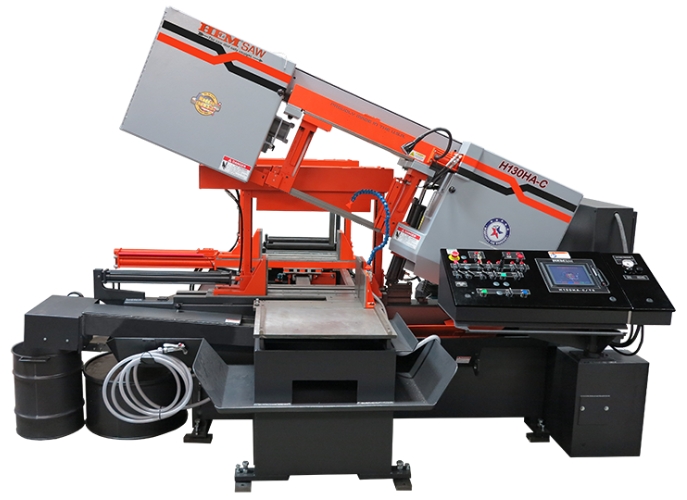

The H130A is known for rugged and dependable band sawing. The 10 HP motor powers the 1½” blade and a 2 HP hydraulic motor provides adjustable clamping force, powered guide arm, and powered blade tension. A 48” multi-index servo twin ball-screw bar-feed, Cut Watcher® System, and chip auger are standard features.
Specifications
| Rectangular Capacity | 0-19″ W x 0-10″ H |
| Square Capacity | 0-16″ (Square) |
| Round Capacity | 0-16″ (Diameter) |
| Bar-feed | 0 – 48″ (Stroke Servo Twin Ball-Screw – Multiple Index) |
| Motor | 10 HP |
| Hydraulic Motor | 2 HP |
| Operation Type | Automatic |
| Power Source | Hydraulic |
| Blade Type | Bandsaw |
| Blade Size | 17′ 0″ L x 1.5″ H x .050″ |
| Bundle Cut? | Yes |
Features
| Smart Saw® Control Console w/9″ Touch Screen |
| Industrial IOT Ready – MTConnect Output |
| Computer Controlled Feed System |
| 24″ Solid Discharge Table – Bolts to Saw |
| Vise – Full Stroking |
| Adjustable Clamping Force |
| Carbide Blade Guides |
| Roller Guides – Entry & Exit |
| Guide Arm – Powered |
| Powered Blade Tension |
| Passive “Cut Watcher®” System |
| Variable Blade Speed w/Readout on Touch Screen |
| Adjustable Feed Rate |
| Adjustable Cutting Pressure |
| Chip/Swarf Removal System – Chip Auger |
| Coolant System – Flood w/Wash-Down Hose |
| Blade Brush |
| Broken Blade Function |
| Out of Stock Function |
| Two-Hand Operation Controls |
| Automatic Blade Idle |
| Blade Change Interlock |
| Safety Guards |
| 220V/3PH or 440V/3PH Electrical Motor Requirement (Not Dual Voltage Machine) |
 |
 |
