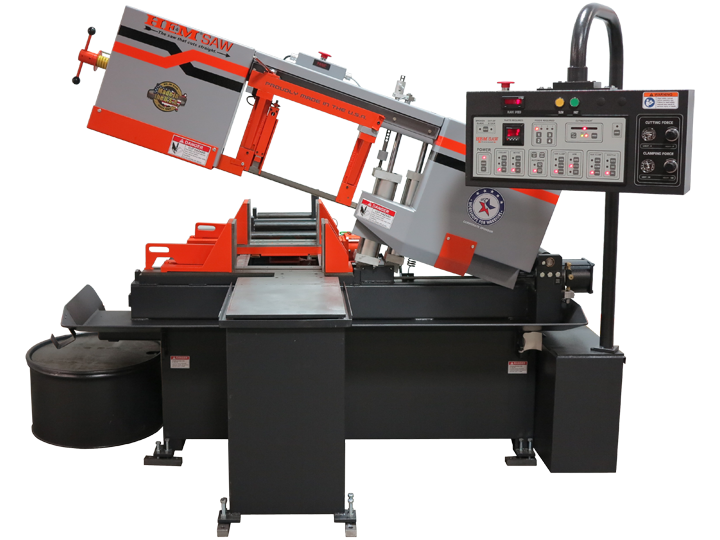

The H90A-C includes a 24” bar-feed, allows multiple indexes, and the ability to create and save up to 99 jobs. Each job includes a job number, part length, and quantity and it runs consecutive job numbers in sequence. The H90A-C produces fast accurate cuts on small solids and shapes.
Specifications
| Rectangular Capacity | 0-12.75″ W x 0-12.75″ H |
| Square Capacity | 0-12″ (Square) |
| Round Capacity | 0-12.75″ (Diameter) |
| Bar-feed | 0-24″ (Stroke Air – Multiple Index) |
| Motor | 3 HP |
| Operation Type | Automatic |
| Power Source | Air |
| Blade Type | Bandsaw |
| Blade Size | 12’10” L x 1″ H x .035″ |
| Bundle Cut? | Yes |
Features
| Easy View Console – All Function Control |
| Computer Controlled Feed System |
| 24″ Solid Discharge Table – Bolts to Saw |
| Vise – Adjustable Main & Feed |
| Adjustable Clamping Force |
| 2 Hold Down Fixtures |
| Guide Arm – Manual Adjustment |
| Passive “Cut Watcher®” System |
| Variable Blade Speed w/LED Readout |
| Carbide Blade Guides |
| Manual Blade Tension |
| Adjustable Feed Rate |
| Adjustable Cutting Pressure |
| Coolant System – Flood w/Wash-Down Hose |
| Vertical Alignment Roller on Bar-Feed |
| Blade Brush |
| Broken Blade Function |
| Out-of-Stock Function |
| Safety Guards |
| 220V/3PH or 440V/3PH Electrical Motor Requirement (Not Dual Voltage Machine) |
| 85 PSI, 4-6 CFM Minimum Air Requirement (Equipped w/Air Filter/Lubricator) |
 |
 |
