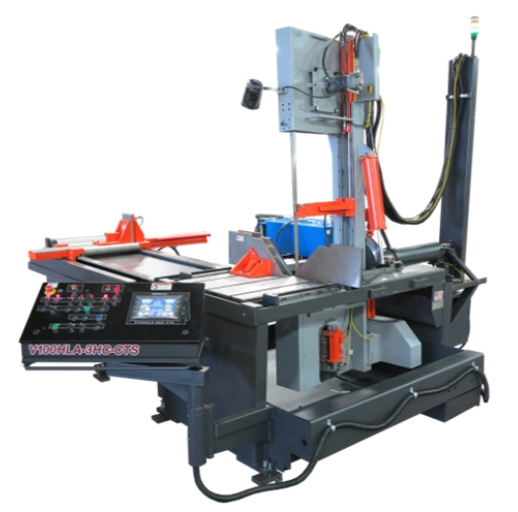

V100HLA-3HC-CTS is a “high column” version of the VT100HLA. It has an expanded height capacity of 31” at 90ᵒ which allows an 18” capacity for 45ᵒ cuts. It is equipped with a 48” bar-feed that is capable of multiple indexes controlled by touch-screen control. Two vises are included.
Specifications
| Rectangular Capacity | 0-18″ W x 0-31″ H |
| Square Capacity | 0-18″ (Square) |
| Round Capacity | 0-18″ (Diameter) |
| Bar-feed | 0-48″ (Stroke Hydraulic Motor – Multiple Index) |
| Motor | 15 HP |
| Hydraulic Motor | 5 HP |
| Operation Type | Automatic |
| Power Source | Hydraulic |
| Blade Type | Bandsaw |
| Blade Size | 16′ 6″ L x 1.25″ H x .042″ |
| Bundle Cut? | Yes |
Features
| Swing-Away Control Console with 8″ Touch Screen |
| Computer Controlled Feed System |
| Powered Programmable Tilt from Touch Screen |
| Vise – Full Stroking Main & Feed |
| Adjustable Clamping Force |
| Electronic Controlled Traverse (Controls Feed Rate & Cutting Force) |
| Variable Blade Speed with Readout on Touch Screen |
| Guide Arm – Powered |
| Powered Blade Tension |
| Passive “Cut Watcher®” System |
| Idler Base Rollers – 1 Each Side of Base |
| Coolant System – Flood with Wash-Down Hose |
| Boltable Side Wings for Coolant Drainage |
| Blade Brush |
| Broken Blade Function |
| Out-of-Stock Function |
| Blade Change Interlock |
| Safety Guards |
| 220V/3PH or 440V/3PH Electrical Motor Requirement – This is Not a Dual Voltage Machine |
 |
 |
