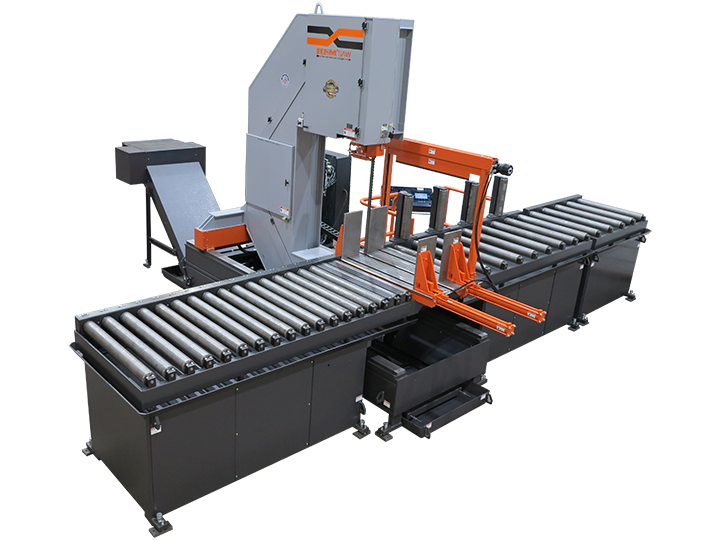

The V360M is a large capacity non-mitering vertical band saw designed to cut large blocks or billets at 90ᵒ. With a 36” high x 36” wide it is equipped with a hefty 20 HP motor and 2” wide blade. A touch screen controls the saw functions, settings, and diagnostics.
Specifications
| Rectangular Capacity | 0-36″ W x 0-36″ H |
| Square Capacity | 0-36″ (Square) |
| Round Capacity | 0-36″ (Diameter) |
| Motor | 20 HP |
| Hydraulic Motor | 5 HP |
| Operation Type | Semi-Automatic |
| Power Source | Hydraulic |
| Blade Type | Bandsaw |
| Blade Size | 27′ 2″ L x 2″ H x .063″ |
| Bandsaw Blade Speed | 60 SFPM-400 SFPMSRPM |
| Bundle Cut? | No |
Features
| Pedestal Mounted Control Console with 9″ Touch Screen |
| Industrial IOT Ready – MTConnect Output |
| Servo Controlled Traverse (SCT) |
| Active “Cut Watcher®” System |
| Vise – Full Stroking Main |
| Adjustable Clamping Force |
| Powered 10′ Roller Load Table |
| Powered 10′ Roller Discharge Table |
| Variable Blade Speed with Readout on Touch Screen |
| Carbide Blade Guides |
| Guide Arm – Powered |
| Powered Blade Tension |
| Chip/Swarf Removal System – Chip Conveyor |
| Coolant System – Flood with Wash-Down Hose |
| Blade Brush |
| Blade Change Interlock |
| Safety Guards |
| 220V/3PH or 440V/3PH Electrical Motor Requirement – This is Not a Dual Voltage Machine |
 |
 |
