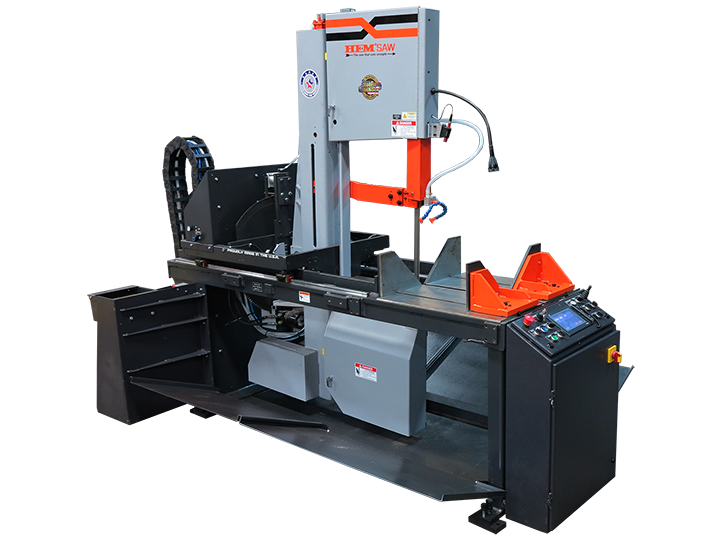

The VT100LM-45 will miter up to 45ᵒ in both directions. A self-contained hydraulic system powers the full stroking vise, arm tilt, and guide arm. Functions are operated from a touch screen control, and the saw can be operated in manual or semi-automatic. Various options are available.
Specifications
| Rectangular Capacity | 0-18″ W x 0-20.75″ H |
| Square Capacity | 0-18″ (Square) |
| Round Capacity | 0-18″ (Diameter) |
| Motor | 5 HP |
| Hydraulic Motor | 1 HP |
| Operation Type | Semi-Automatic |
| Power Source | Air |
| Blade Type | Bandsaw |
| Blade Size | 15′ 6″ L x 1.25″ H x .042″ |
| Cantilever | Removable |
| Bundle Cut? | No |
Features
| Control Console with 7″ Touch Screen |
| 2° Arm Cant |
| Powered Tilt with Angle Readout on Touch Screen |
| Vise – Full Stroking Main |
| Adjustable Clamping Force |
| Carbide Blade Guides |
| Guide Arm – Powered |
| Variable Blade Speed with Readout on Touch Screen |
| Air Powered Blade Tension |
| Adjustable Feed Rate |
| Adjustable Cutting Pressure |
| Coolant System – Flood with Wash-Down Hose |
| Boltable Side Wings for Coolant Drainage |
| Blade Brush |
| Safety Guards |
| 220V/3PH or 440V/3PH Electrical Motor Requirement – This is Not a Dual Voltage Machine |
| 85 PSI, 4-6 CFM Minimum Air Requirement (Equipped with Air Filter/Lubricator) |
 |
 |
