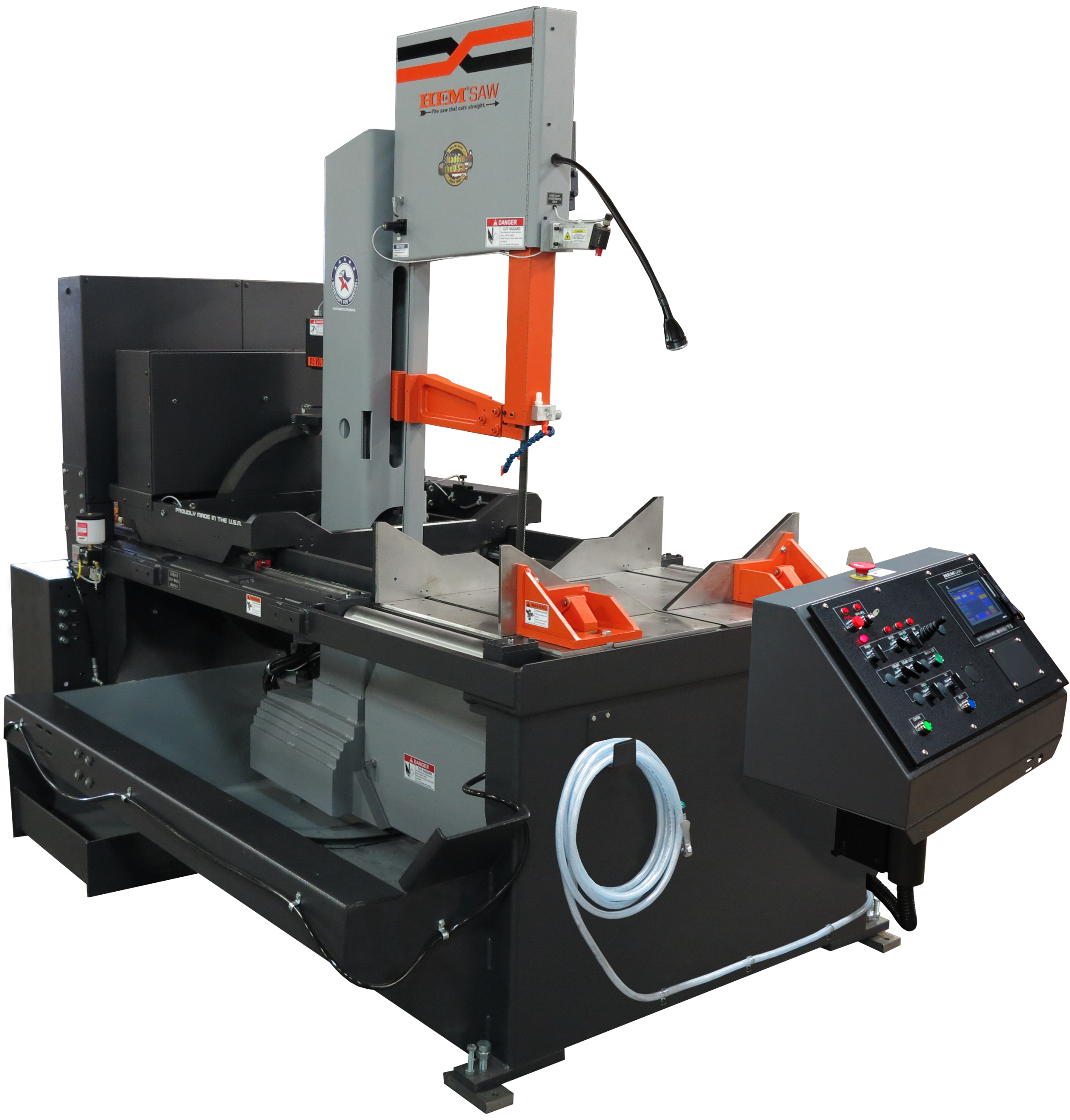

The VT120HM-60-CTS miters up to 60ᵒ in both directions. The control console is located in a swing-away console at the front of the saw. A touch screen is used to operate the various functions on the saw. Optional vises and other features are available.
Specifications
| Rectangular Capacity | 0-18″ W x 0-24″ H |
| Square Capacity | 0-18″ (Square) |
| Round Capacity | 0-18″ (Diameter) |
| Motor | 7.5 HP |
| Hydraulic Motor | 5 HP |
| Operation Type | Semi-Automatic |
| Power Source | Hydraulic |
| Blade Type | Bandsaw |
| Blade Size | 16′ 6″ L x 1.25″ H x .042″ |
| Cantilever | Fixed |
| Bundle Cut? | Yes |
Features
| Swing-Away Control Console with 7″ Touch Screen |
| Powered Programmable Tilt with Angle Readout |
| Vise – Full Stroking Main |
| Adjustable Clamping Force |
| Variable Blade Speed with Readout on Touch Screen |
| Carbide Blade Guides |
| Guide Arm – Powered |
| Electronic Controlled Traverse (Controls Feed Rate & Cutting Force) |
| Powered Blade Tension |
| Idle Base Rollers – 1 Each Side of Base |
| Forward Cut Stop |
| Chip/Swarf Removal System – Manual Head-Crank Chip Conveyor |
| Coolant System – Flood with Wash-Down Hose |
| Blade Brush |
| Broken Blade Function |
| Safety Guards |
| 220V/3PH or 440V/3PH Electrical Motor Requirement – This is Not a Dual Voltage Machine |
 |
 |
