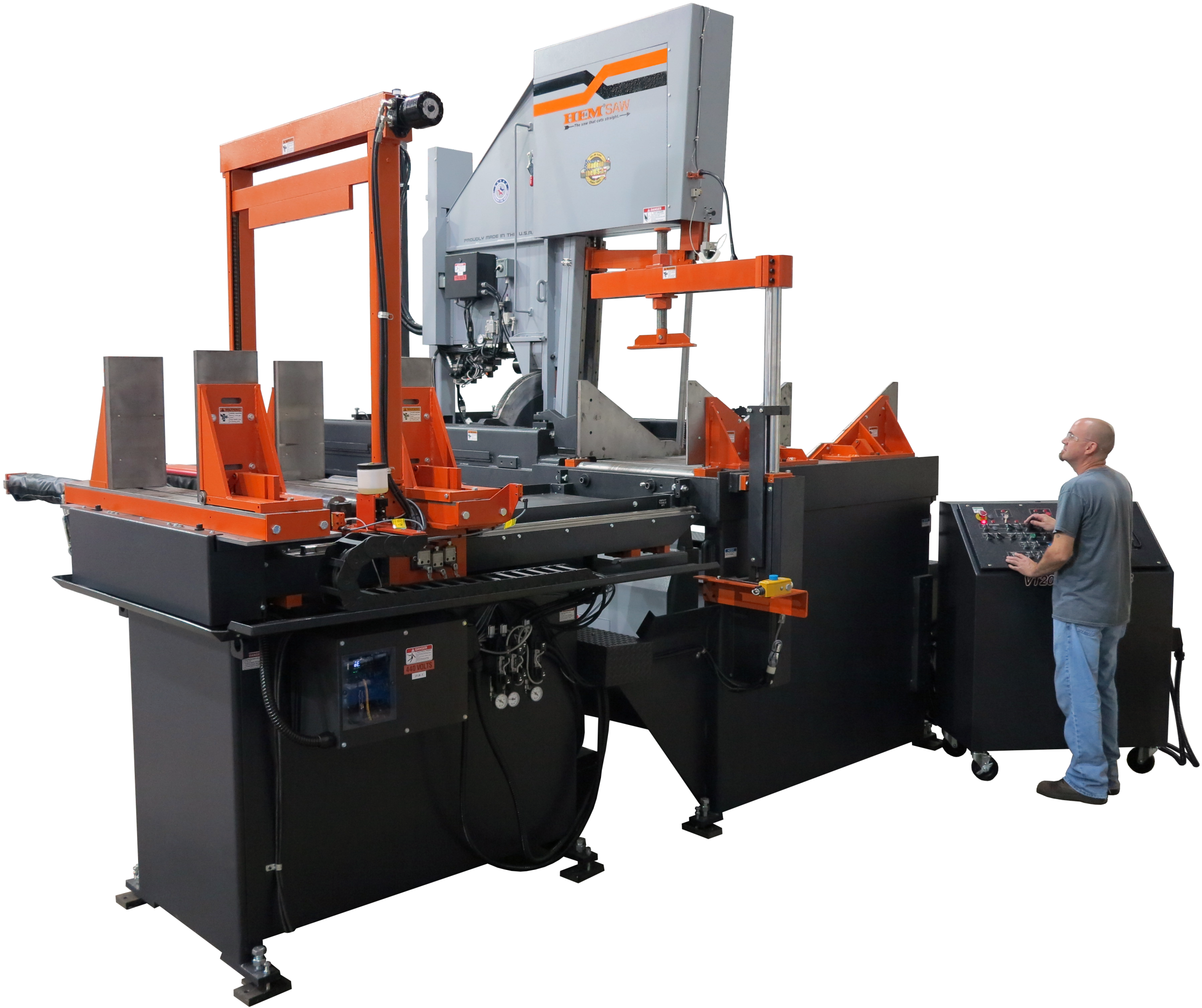

The VT200HA-60-CTS band saw is operated using a touch screen control that includes a material list and allows saving jobs for future use. A touch screen control operates the functions and the programmable arm can miter up to 60ᵒ in both directions.
Specifications
| Rectangular Capacity | 0-25″ W x 0-36″ H |
| Square Capacity | 0-25″ (Square) |
| Round Capacity | 0-25″ (Diameter) |
| Bar-Feed | 0-48″ (Stroke Servo Twin Ball-Screw – Multiple Index) |
| Motor | 15 HP |
| Hydraulic Motor | 5 HP |
| Operation Type | Automatic |
| Power Source | Hydraulic |
| Blade Type | Bandsaw |
| Blade Size | 24′ 8″ L x 2″ H x .063″ |
| Cantilever | Fixed |
| Bundle Cut? | Yes |
Features
| Swing-Away Control Console with 8″ Touch Screen |
| Computer Controlled Feed System |
| Powered Programmable Tilt with Angle Readout |
| Vise – Full Stroking Including 2nd Main Vise |
| Adjustable Clamping Force |
| Electronic Controlled Traverse (Controls Feed Rate & Cutting Force) |
| Carbide Blade Guides |
| Passive “Cut Watcher®” System |
| Forward Cut Stop |
| Power Raised Lift Up Rollers |
| Powered Blade Tension |
| Guide Arm – Powered |
| Variable Blade Speed with Readout on Touch Screen |
| Chip/Swarf Removal System – Chip Conveyor |
| Coolant System – Flood with Wash-Down Hose |
| Blade Saver |
| Two-Hand Operation Controls |
| Blade Brush |
| Broken Blade Function |
| Out-of-Stock Fuction |
| Blade Change Interlock |
| Safety Guards |
| 220V/3PH or 440V/3PH Electrical Motor Requirement – This is Not a Dual Voltage Machine |
 |
 |
